Definition Type: ComplexType
Name: MsgTypeGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-components-base-5-0-SP2.xsd
Abstract

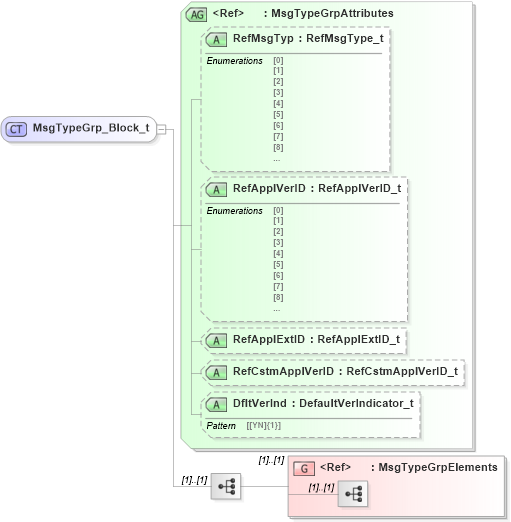

Collapse XSD Schema Diagram:
Drilldown into MsgTypeGrpElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into DfltVerInd in schema fixml-components-base-5-0-sp2_xsd Drilldown into RefCstmApplVerID in schema fixml-components-base-5-0-sp2_xsd Drilldown into RefApplExtID in schema fixml-components-base-5-0-sp2_xsd Drilldown into RefApplVerID in schema fixml-components-base-5-0-sp2_xsd Drilldown into RefMsgTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into MsgTypeGrpAttributes in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of MsgTypeGrp_Block_t in schema fixml-components-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="MsgTypeGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="MsgTypeGrp" ComponentType="ImplicitBlockRepeating" Category="Common" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="MsgTypeGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="MsgTypeGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:MsgTypeGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
RefMsgTyp nsA:RefMsgTyp Optional
RefApplVerID nsA:RefApplVerID Optional
RefApplExtID nsA:RefApplExtID Optional
RefCstmApplVerID nsA:RefCstmApplVerID Optional
DfltVerInd nsA:DfltVerInd Optional
