Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: NewsAttributes
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-newsevents-base-5-0-SP2.xsd

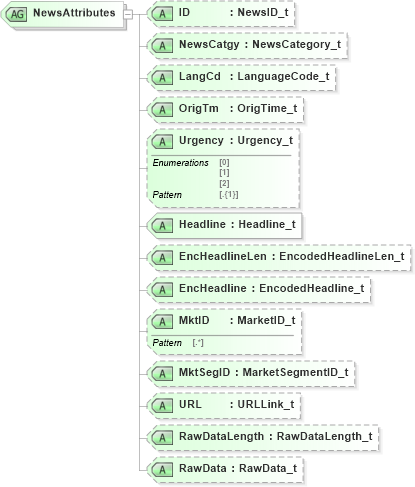

Collapse XSD Schema Diagram:
Drilldown into RawData in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into RawDataLength in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into URL in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into MktSegID in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into MktID in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into EncHeadline in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into EncHeadlineLen in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into Headline in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into Urgency in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into OrigTm in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into LangCd in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into NewsCatgy in schema fixml-newsevents-base-5-0-sp2_xsd Drilldown into ID in schema fixml-newsevents-base-5-0-sp2_xsdXSD Diagram of NewsAttributes in schema fixml-newsevents-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="NewsAttributes">
    <xs:attribute name="ID" type="NewsID_t" use="optional" />
    <xs:attribute name="NewsCatgy" type="NewsCategory_t" use="optional" />
    <xs:attribute name="LangCd" type="LanguageCode_t" use="optional" />
    <xs:attribute name="OrigTm" type="OrigTime_t" use="optional" />
    <xs:attribute name="Urgency" type="Urgency_t" use="optional" />
    <xs:attribute name="Headline" type="Headline_t" use="required" />
    <xs:attribute name="EncHeadlineLen" type="EncodedHeadlineLen_t" use="optional" />
    <xs:attribute name="EncHeadline" type="EncodedHeadline_t" use="optional" />
    <xs:attribute name="MktID" type="MarketID_t" use="optional" />
    <xs:attribute name="MktSegID" type="MarketSegmentID_t" use="optional" />
    <xs:attribute name="URL" type="URLLink_t" use="optional" />
    <xs:attribute name="RawDataLength" type="RawDataLength_t" use="optional" />
    <xs:attribute name="RawData" type="RawData_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Optional
NewsCatgy nsA:NewsCatgy Optional
LangCd nsA:LangCd Optional
OrigTm nsA:OrigTm Optional
Urgency nsA:Urgency Optional
Headline nsA:Headline Required
EncHeadlineLen nsA:EncHeadlineLen Optional
EncHeadline nsA:EncHeadline Optional
MktID nsA:MktID Optional
MktSegID nsA:MktSegID Optional
URL nsA:URL Optional
RawDataLength nsA:RawDataLength Optional
RawData nsA:RawData Optional
