Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: OrderCancelReject_message_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:Abstract_message_t
Containing Schema: fixml-order-base-5-0-SP2.xsd
Abstract
Documentation:
OrderCancelReject can be found in Volume4 of the specification

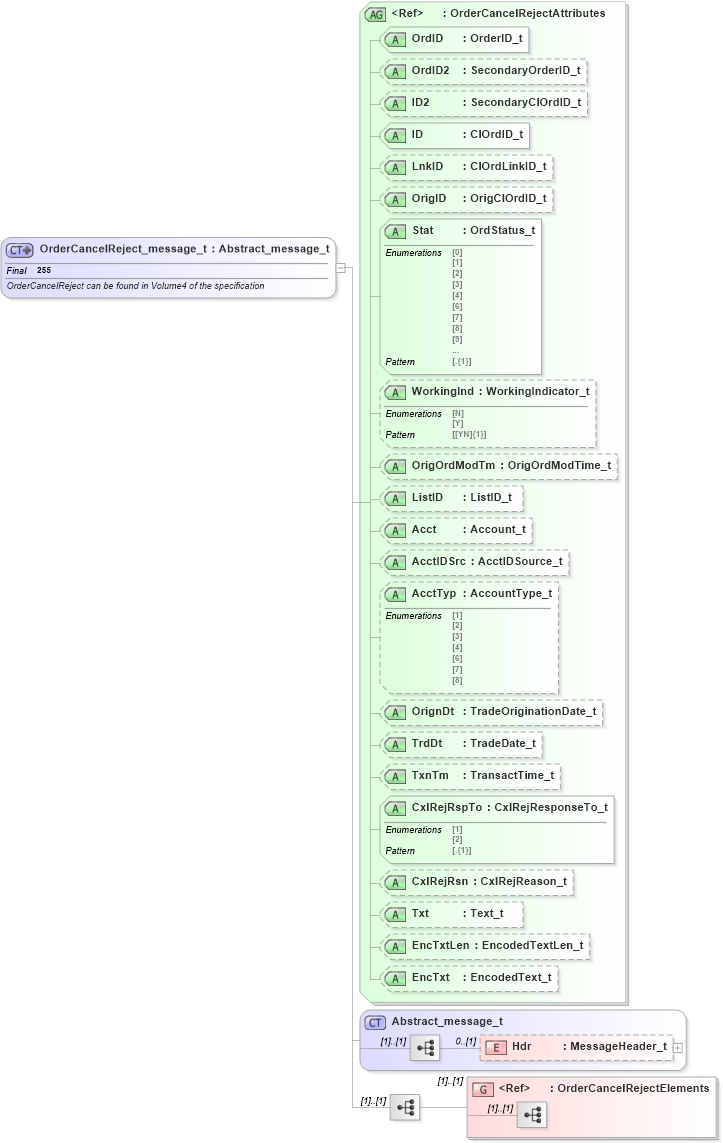

Collapse XSD Schema Diagram:
Drilldown into OrderCancelRejectElements in schema fixml-order-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-order-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-order-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-order-base-5-0-sp2_xsd Drilldown into CxlRejRsn in schema fixml-order-base-5-0-sp2_xsd Drilldown into CxlRejRspTo in schema fixml-order-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-order-base-5-0-sp2_xsd Drilldown into TrdDt in schema fixml-order-base-5-0-sp2_xsd Drilldown into OrignDt in schema fixml-order-base-5-0-sp2_xsd Drilldown into AcctTyp in schema fixml-order-base-5-0-sp2_xsd Drilldown into AcctIDSrc in schema fixml-order-base-5-0-sp2_xsd Drilldown into Acct in schema fixml-order-base-5-0-sp2_xsd Drilldown into ListID in schema fixml-order-base-5-0-sp2_xsd Drilldown into OrigOrdModTm in schema fixml-order-base-5-0-sp2_xsd Drilldown into WorkingInd in schema fixml-order-base-5-0-sp2_xsd Drilldown into Stat in schema fixml-order-base-5-0-sp2_xsd Drilldown into OrigID in schema fixml-order-base-5-0-sp2_xsd Drilldown into LnkID in schema fixml-order-base-5-0-sp2_xsd Drilldown into ID in schema fixml-order-base-5-0-sp2_xsd Drilldown into ID2 in schema fixml-order-base-5-0-sp2_xsd Drilldown into OrdID2 in schema fixml-order-base-5-0-sp2_xsd Drilldown into OrdID in schema fixml-order-base-5-0-sp2_xsd Drilldown into OrderCancelRejectAttributes in schema fixml-order-base-5-0-sp2_xsdXSD Diagram of OrderCancelReject_message_t in schema fixml-order-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="OrderCancelReject_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">OrderCancelReject can be found in Volume4 of the specification </xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="OrderCancelReject" ComponentType="Message" MsgID="10" Section="Trade" Category="SingleGeneralOrderHandling" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="OrderCancelRejectElements" />
            </xs:sequence>
            <xs:attributeGroup ref="OrderCancelRejectAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
<xs:group> nsA:OrderCancelRejectElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
OrdID nsA:OrdID Required
OrdID2 nsA:OrdID2 Optional
ID2 nsA:ID2 Optional
ID nsA:ID Required
LnkID nsA:LnkID Optional
OrigID nsA:OrigID Optional
Stat nsA:Stat Required
WorkingInd nsA:WorkingInd Optional
OrigOrdModTm nsA:OrigOrdModTm Optional
ListID nsA:ListID Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
OrignDt nsA:OrignDt Optional
TrdDt nsA:TrdDt Optional
TxnTm nsA:TxnTm Optional
CxlRejRspTo nsA:CxlRejRspTo Required
CxlRejRsn nsA:CxlRejRsn Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:OrdCxlRej
