Documentation for Financial Information eXchange (FIX)
Definition Type: Group
Name: OrderMassCancelReportElements
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-ordermasshandling-base-5-0-SP2.xsd

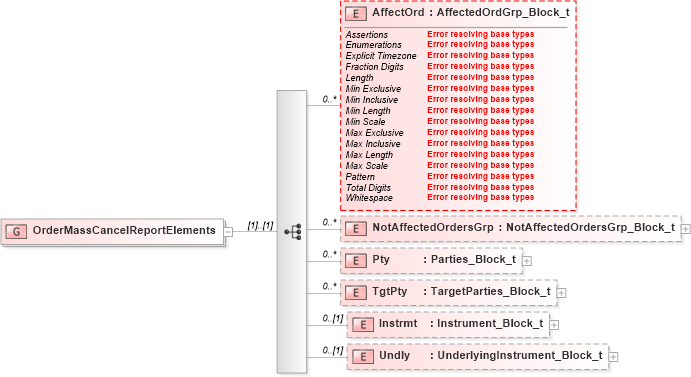

Collapse XSD Schema Diagram:
Drilldown into Undly in schema fixml-ordermasshandling-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-ordermasshandling-base-5-0-sp2_xsd Drilldown into TgtPty in schema fixml-ordermasshandling-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-ordermasshandling-base-5-0-sp2_xsd Drilldown into NotAffectedOrdersGrp in schema fixml-ordermasshandling-base-5-0-sp2_xsd Drilldown into AffectOrd in schema fixml-ordermasshandling-base-5-0-sp2_xsdXSD Diagram of OrderMassCancelReportElements in schema fixml-ordermasshandling-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:group name="OrderMassCancelReportElements">
    <xs:sequence>
        <xs:element name="AffectOrd" type="AffectedOrdGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="NotAffectedOrdersGrp" type="NotAffectedOrdersGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Pty" type="Parties_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="TgtPty" type="TargetParties_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Instrmt" type="Instrument_Block_t" minOccurs="0" />
        <xs:element name="Undly" type="UnderlyingInstrument_Block_t" minOccurs="0" />
    </xs:sequence>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AffectOrd nsA:AffectOrd 0 unbounded
NotAffectedOrdersGrp nsA:NotAffectedOrdersGrp 0 unbounded
Pty nsA:Pty 0 unbounded
TgtPty nsA:TgtPty 0 unbounded
Instrmt nsA:Instrmt 0 (1)
Undly nsA:Undly 0 (1)
