Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: PositionMaintenanceReport_message_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:Abstract_message_t
Containing Schema: fixml-positions-base-5-0-SP2.xsd
Abstract
Documentation:
PositionMaintenanceReport can be found in Volume5 of the specification

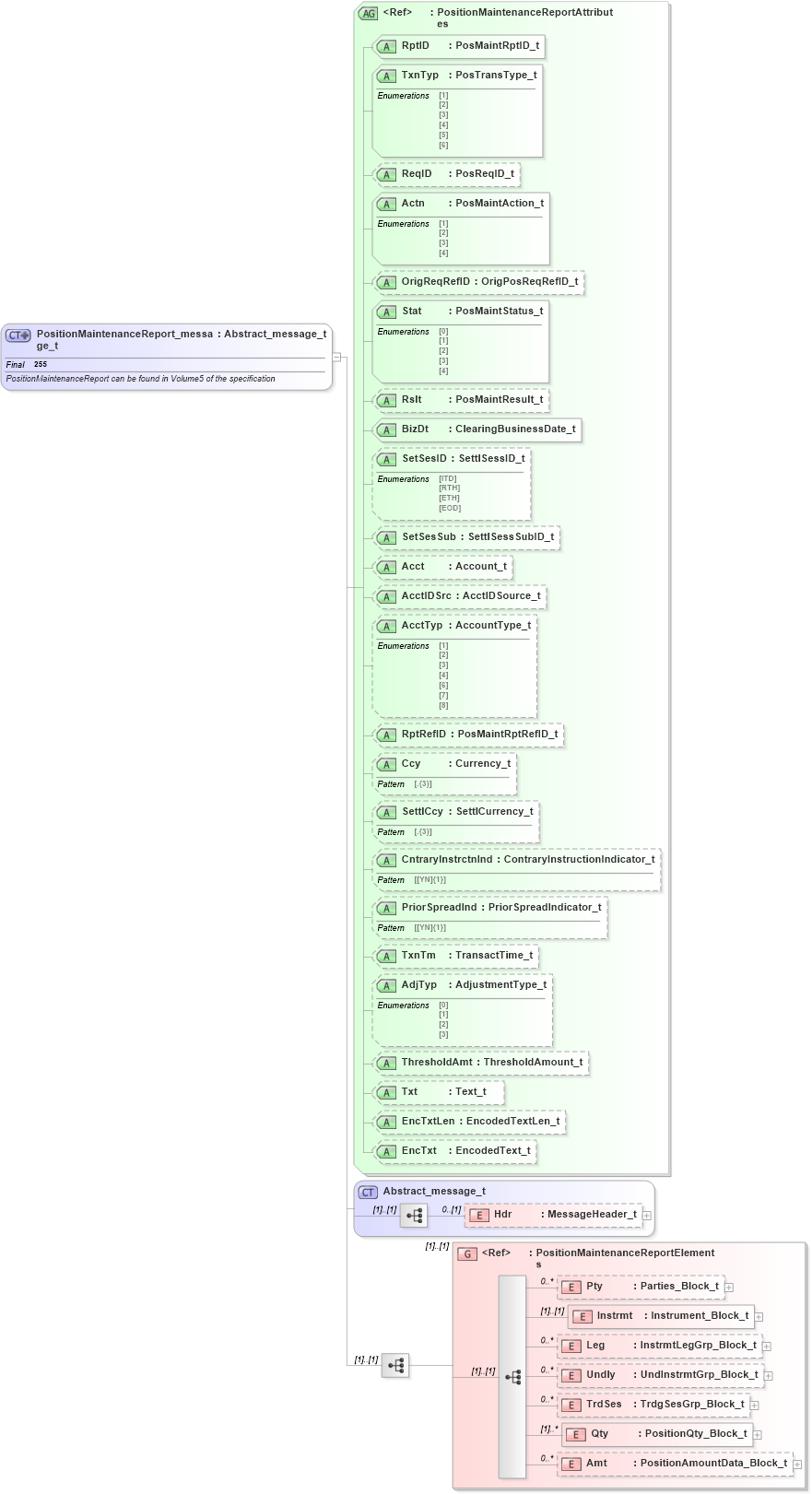

Collapse XSD Schema Diagram:
Drilldown into Amt in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Qty in schema fixml-positions-base-5-0-sp2_xsd Drilldown into TrdSes in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Undly in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Leg in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-positions-base-5-0-sp2_xsd Drilldown into PositionMaintenanceReportElements in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-positions-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-positions-base-5-0-sp2_xsd Drilldown into ThresholdAmt in schema fixml-positions-base-5-0-sp2_xsd Drilldown into AdjTyp in schema fixml-positions-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-positions-base-5-0-sp2_xsd Drilldown into PriorSpreadInd in schema fixml-positions-base-5-0-sp2_xsd Drilldown into CntraryInstrctnInd in schema fixml-positions-base-5-0-sp2_xsd Drilldown into SettlCcy in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Ccy in schema fixml-positions-base-5-0-sp2_xsd Drilldown into RptRefID in schema fixml-positions-base-5-0-sp2_xsd Drilldown into AcctTyp in schema fixml-positions-base-5-0-sp2_xsd Drilldown into AcctIDSrc in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Acct in schema fixml-positions-base-5-0-sp2_xsd Drilldown into SetSesSub in schema fixml-positions-base-5-0-sp2_xsd Drilldown into SetSesID in schema fixml-positions-base-5-0-sp2_xsd Drilldown into BizDt in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Rslt in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Stat in schema fixml-positions-base-5-0-sp2_xsd Drilldown into OrigReqRefID in schema fixml-positions-base-5-0-sp2_xsd Drilldown into Actn in schema fixml-positions-base-5-0-sp2_xsd Drilldown into ReqID in schema fixml-positions-base-5-0-sp2_xsd Drilldown into TxnTyp in schema fixml-positions-base-5-0-sp2_xsd Drilldown into RptID in schema fixml-positions-base-5-0-sp2_xsd Drilldown into PositionMaintenanceReportAttributes in schema fixml-positions-base-5-0-sp2_xsdXSD Diagram of PositionMaintenanceReport_message_t in schema fixml-positions-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="PositionMaintenanceReport_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">PositionMaintenanceReport can be found in Volume5 of the specification </xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="PositionMaintenanceReport" ComponentType="Message" MsgID="72" Section="Post Trade" Category="PositionMaintenance" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="PositionMaintenanceReportElements" />
            </xs:sequence>
            <xs:attributeGroup ref="PositionMaintenanceReportAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty 0 unbounded
Instrmt nsA:Instrmt (1) (1)
Leg nsA:Leg 0 unbounded
Undly nsA:Undly 0 unbounded
TrdSes nsA:TrdSes 0 unbounded
Qty nsA:Qty (1) unbounded
Amt nsA:Amt 0 unbounded
<xs:group> nsA:PositionMaintenanceReportElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
TxnTyp nsA:TxnTyp Required
ReqID nsA:ReqID Optional
Actn nsA:Actn Required
OrigReqRefID nsA:OrigReqRefID Optional
Stat nsA:Stat Required
Rslt nsA:Rslt Optional
BizDt nsA:BizDt Required
SetSesID nsA:SetSesID Optional
SetSesSub nsA:SetSesSub Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
RptRefID nsA:RptRefID Optional
Ccy nsA:Ccy Optional
SettlCcy nsA:SettlCcy Optional
CntraryInstrctnInd nsA:CntraryInstrctnInd Optional
PriorSpreadInd nsA:PriorSpreadInd Optional
TxnTm nsA:TxnTm Optional
AdjTyp nsA:AdjTyp Optional
ThresholdAmt nsA:ThresholdAmt Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:PosMntRpt
