Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: QuotCxlEntriesGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-quotation-base-5-0-SP2.xsd
Abstract

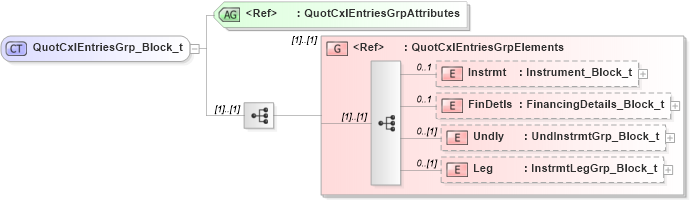

Collapse XSD Schema Diagram:
Drilldown into Leg in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Undly in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into FinDetls in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuotCxlEntriesGrpElements in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuotCxlEntriesGrpAttributes in schema fixml-quotation-base-5-0-sp2_xsdXSD Diagram of QuotCxlEntriesGrp_Block_t in schema fixml-quotation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="QuotCxlEntriesGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="QuotCxlEntriesGrp" ComponentType="ImplicitBlockRepeating" Category="QuotationNegotiation" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="QuotCxlEntriesGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="QuotCxlEntriesGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instrmt nsA:Instrmt 0 1
FinDetls nsA:FinDetls 0 1
Undly nsA:Undly 0 (1)
Leg nsA:Leg 0 (1)
<xs:group> nsA:QuotCxlEntriesGrpElements (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:QuotCxlEntry
