Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: QuotEntryAckGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-quotation-base-5-0-SP2.xsd
Abstract

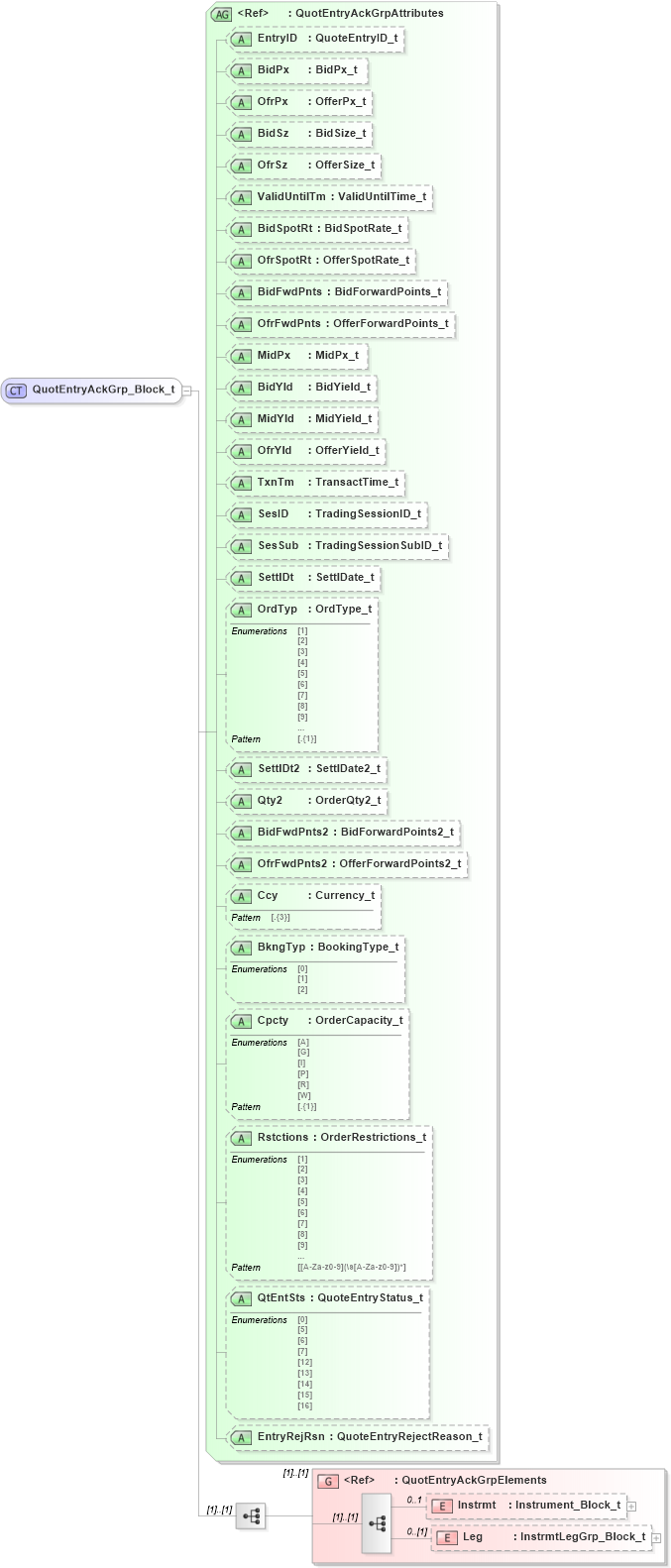

Collapse XSD Schema Diagram:
Drilldown into Leg in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuotEntryAckGrpElements in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into EntryRejRsn in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QtEntSts in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Rstctions in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Cpcty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into BkngTyp in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Ccy in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OfrFwdPnts2 in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into BidFwdPnts2 in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Qty2 in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SettlDt2 in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OrdTyp in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SettlDt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SesSub in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SesID in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OfrYld in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into MidYld in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into BidYld in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into MidPx in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OfrFwdPnts in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into BidFwdPnts in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OfrSpotRt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into BidSpotRt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into ValidUntilTm in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OfrSz in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into BidSz in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OfrPx in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into BidPx in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into EntryID in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuotEntryAckGrpAttributes in schema fixml-quotation-base-5-0-sp2_xsdXSD Diagram of QuotEntryAckGrp_Block_t in schema fixml-quotation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="QuotEntryAckGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="QuotEntryAckGrp" ComponentType="ImplicitBlockRepeating" Category="QuotationNegotiation" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="QuotEntryAckGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="QuotEntryAckGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instrmt nsA:Instrmt 0 1
Leg nsA:Leg 0 (1)
<xs:group> nsA:QuotEntryAckGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
EntryID nsA:EntryID Optional
BidPx nsA:BidPx Optional
OfrPx nsA:OfrPx Optional
BidSz nsA:BidSz Optional
OfrSz nsA:OfrSz Optional
ValidUntilTm nsA:ValidUntilTm Optional
BidSpotRt nsA:BidSpotRt Optional
OfrSpotRt nsA:OfrSpotRt Optional
BidFwdPnts nsA:BidFwdPnts Optional
OfrFwdPnts nsA:OfrFwdPnts Optional
MidPx nsA:MidPx Optional
BidYld nsA:BidYld Optional
MidYld nsA:MidYld Optional
OfrYld nsA:OfrYld Optional
TxnTm nsA:TxnTm Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
SettlDt nsA:SettlDt Optional
OrdTyp nsA:OrdTyp Optional
SettlDt2 nsA:SettlDt2 Optional
Qty2 nsA:Qty2 Optional
BidFwdPnts2 nsA:BidFwdPnts2 Optional
OfrFwdPnts2 nsA:OfrFwdPnts2 Optional
Ccy nsA:Ccy Optional
BkngTyp nsA:BkngTyp Optional
Cpcty nsA:Cpcty Optional
Rstctions nsA:Rstctions Optional
QtEntSts nsA:QtEntSts Optional
EntryRejRsn nsA:EntryRejRsn Optional
Collapse Derivation Tree:
Collapse References:
nsA:QuotEntryAck
