Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: QuoteRequestAttributes
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-quotation-base-5-0-SP2.xsd

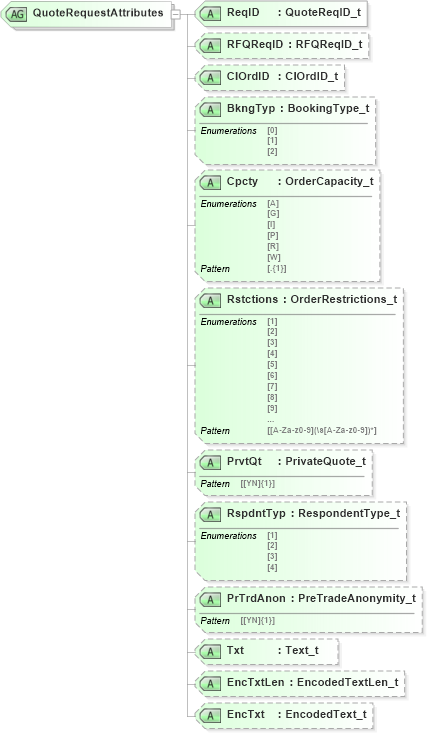

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into PrTrdAnon in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into RspdntTyp in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into PrvtQt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Rstctions in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Cpcty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into BkngTyp in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into ClOrdID in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into RFQReqID in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into ReqID in schema fixml-quotation-base-5-0-sp2_xsdXSD Diagram of QuoteRequestAttributes in schema fixml-quotation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="QuoteRequestAttributes">
    <xs:attribute name="ReqID" type="QuoteReqID_t" use="required" />
    <xs:attribute name="RFQReqID" type="RFQReqID_t" use="optional" />
    <xs:attribute name="ClOrdID" type="ClOrdID_t" use="optional" />
    <xs:attribute name="BkngTyp" type="BookingType_t" use="optional" />
    <xs:attribute name="Cpcty" type="OrderCapacity_t" use="optional" />
    <xs:attribute name="Rstctions" type="OrderRestrictions_t" use="optional" />
    <xs:attribute name="PrvtQt" type="PrivateQuote_t" use="optional" />
    <xs:attribute name="RspdntTyp" type="RespondentType_t" use="optional" />
    <xs:attribute name="PrTrdAnon" type="PreTradeAnonymity_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
RFQReqID nsA:RFQReqID Optional
ClOrdID nsA:ClOrdID Optional
BkngTyp nsA:BkngTyp Optional
Cpcty nsA:Cpcty Optional
Rstctions nsA:Rstctions Optional
PrvtQt nsA:PrvtQt Optional
RspdntTyp nsA:RspdntTyp Optional
PrTrdAnon nsA:PrTrdAnon Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
