Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: QuoteRequestReject_message_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:Abstract_message_t
Containing Schema: fixml-quotation-base-5-0-SP2.xsd
Abstract
Documentation:
QuoteRequestReject can be found in Volume3 of the specification
Collapse XSD Schema Diagram:

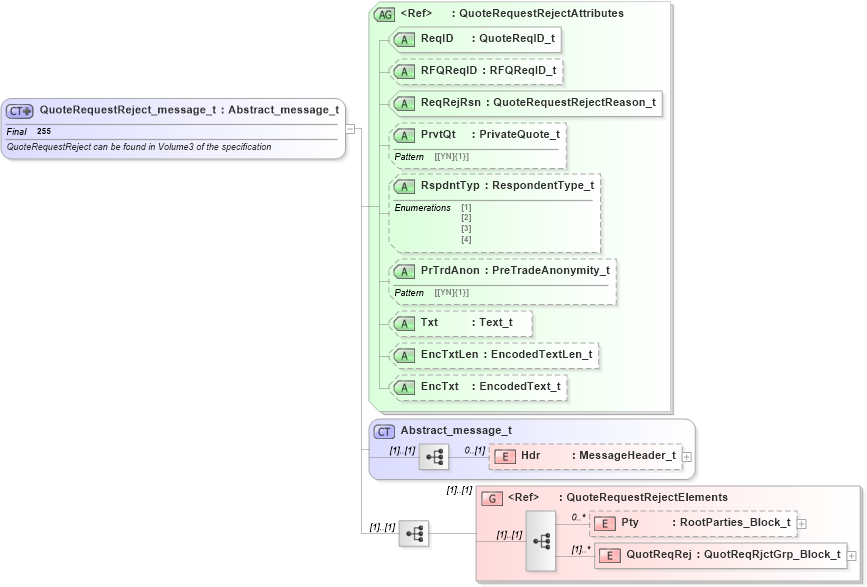

Drilldown into QuotReqRej in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuoteRequestRejectElements in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into PrTrdAnon in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into RspdntTyp in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into PrvtQt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into ReqRejRsn in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into RFQReqID in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into ReqID in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuoteRequestRejectAttributes in schema fixml-quotation-base-5-0-sp2_xsdXSD Diagram of QuoteRequestReject_message_t in schema fixml-quotation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="QuoteRequestReject_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">QuoteRequestReject can be found in Volume3 of the specification </xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="QuoteRequestReject" ComponentType="Message" MsgID="66" Section="Pre Trade" Category="QuotationNegotiation" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="QuoteRequestRejectElements" />
            </xs:sequence>
            <xs:attributeGroup ref="QuoteRequestRejectAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty 0 unbounded
QuotReqRej nsA:QuotReqRej (1) unbounded
<xs:group> nsA:QuoteRequestRejectElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
RFQReqID nsA:RFQReqID Optional
ReqRejRsn nsA:ReqRejRsn Required
PrvtQt nsA:PrvtQt Optional
RspdntTyp nsA:RspdntTyp Optional
PrTrdAnon nsA:PrTrdAnon Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:QuotReqRej
