Documentation for Financial Information eXchange (FIX)
Definition Type: Group
Name: QuotReqGrpElements
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-quotation-base-5-0-SP2.xsd

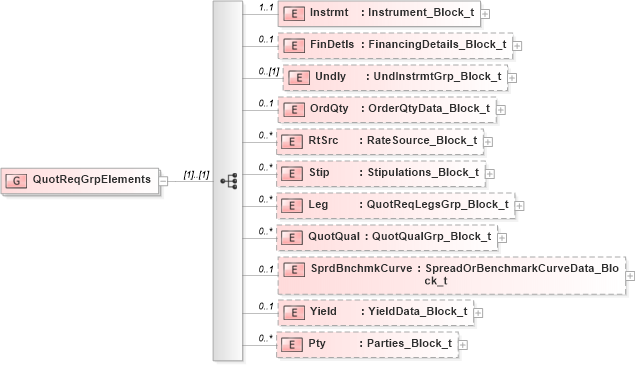

Collapse XSD Schema Diagram:
Drilldown into Pty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Yield in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SprdBnchmkCurve in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuotQual in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Leg in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Stip in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into RtSrc in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OrdQty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Undly in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into FinDetls in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-quotation-base-5-0-sp2_xsdXSD Diagram of QuotReqGrpElements in schema fixml-quotation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:group name="QuotReqGrpElements">
    <xs:sequence>
        <xs:element name="Instrmt" type="Instrument_Block_t" minOccurs="1" maxOccurs="1" />
        <xs:element name="FinDetls" type="FinancingDetails_Block_t" minOccurs="0" maxOccurs="1" />
        <xs:element name="Undly" type="UndInstrmtGrp_Block_t" minOccurs="0" />
        <xs:element name="OrdQty" type="OrderQtyData_Block_t" minOccurs="0" maxOccurs="1" />
        <xs:element name="RtSrc" type="RateSource_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Stip" type="Stipulations_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Leg" type="QuotReqLegsGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="QuotQual" type="QuotQualGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="SprdBnchmkCurve" type="SpreadOrBenchmarkCurveData_Block_t" minOccurs="0" maxOccurs="1" />
        <xs:element name="Yield" type="YieldData_Block_t" minOccurs="0" maxOccurs="1" />
        <xs:element name="Pty" type="Parties_Block_t" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instrmt nsA:Instrmt 1 1
FinDetls nsA:FinDetls 0 1
Undly nsA:Undly 0 (1)
OrdQty nsA:OrdQty 0 1
RtSrc nsA:RtSrc 0 unbounded
Stip nsA:Stip 0 unbounded
Leg nsA:Leg 0 unbounded
QuotQual nsA:QuotQual 0 unbounded
SprdBnchmkCurve nsA:SprdBnchmkCurve 0 1
Yield nsA:Yield 0 1
Pty nsA:Pty 0 unbounded
