Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: QuotReqLegsGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-quotation-base-5-0-SP2.xsd
Abstract
Collapse XSD Schema Diagram:

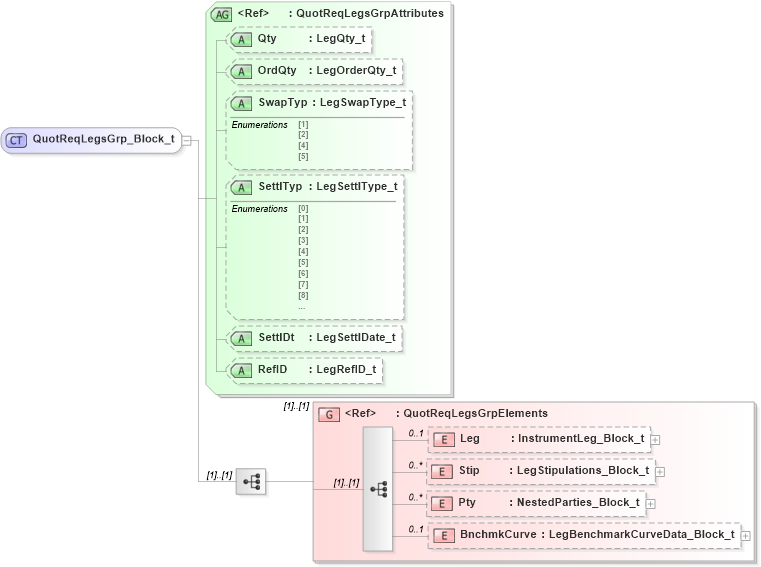

Drilldown into BnchmkCurve in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Stip in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Leg in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuotReqLegsGrpElements in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into RefID in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SettlDt in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SettlTyp in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SwapTyp in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into OrdQty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Qty in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuotReqLegsGrpAttributes in schema fixml-quotation-base-5-0-sp2_xsdXSD Diagram of QuotReqLegsGrp_Block_t in schema fixml-quotation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="QuotReqLegsGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="QuotReqLegsGrp" ComponentType="ImplicitBlockRepeating" Category="QuotationNegotiation" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="QuotReqLegsGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="QuotReqLegsGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Leg nsA:Leg 0 1
Stip nsA:Stip 0 unbounded
Pty nsA:Pty 0 unbounded
BnchmkCurve nsA:BnchmkCurve 0 1
<xs:group> nsA:QuotReqLegsGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Qty nsA:Qty Optional
OrdQty nsA:OrdQty Optional
SwapTyp nsA:SwapTyp Optional
SettlTyp nsA:SettlTyp Optional
SettlDt nsA:SettlDt Optional
RefID nsA:RefID Optional
Collapse Derivation Tree:
Collapse References:
nsA:Leg, nsA:Leg
