Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: QuotSetAckGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-quotation-base-5-0-SP2.xsd
Abstract

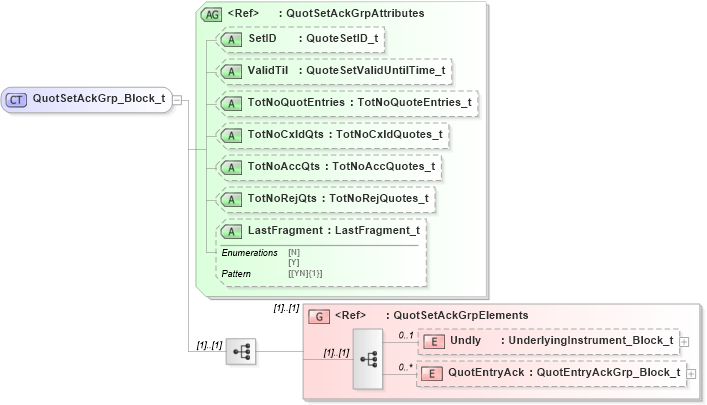

Collapse XSD Schema Diagram:
Drilldown into QuotEntryAck in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into Undly in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuotSetAckGrpElements in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into LastFragment in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into TotNoRejQts in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into TotNoAccQts in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into TotNoCxldQts in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into TotNoQuotEntries in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into ValidTil in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into SetID in schema fixml-quotation-base-5-0-sp2_xsd Drilldown into QuotSetAckGrpAttributes in schema fixml-quotation-base-5-0-sp2_xsdXSD Diagram of QuotSetAckGrp_Block_t in schema fixml-quotation-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="QuotSetAckGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="QuotSetAckGrp" ComponentType="ImplicitBlockRepeating" Category="QuotationNegotiation" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="QuotSetAckGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="QuotSetAckGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Undly nsA:Undly 0 1
QuotEntryAck nsA:QuotEntryAck 0 unbounded
<xs:group> nsA:QuotSetAckGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
SetID nsA:SetID Optional
ValidTil nsA:ValidTil Optional
TotNoQuotEntries nsA:TotNoQuotEntries Optional
TotNoCxldQts nsA:TotNoCxldQts Optional
TotNoAccQts nsA:TotNoAccQts Optional
TotNoRejQts nsA:TotNoRejQts Optional
LastFragment nsA:LastFragment Optional
Collapse Derivation Tree:
Collapse References:
nsA:QuotSetAck
