Documentation for Financial Information eXchange (FIX)
Definition Type: Group
Name: RelatedPartyDetailElements
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-partiesreference-base-5-0-SP2.xsd

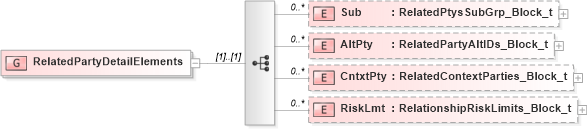

Collapse XSD Schema Diagram:
Drilldown into RiskLmt in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into CntxtPty in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into AltPty in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into Sub in schema fixml-partiesreference-base-5-0-sp2_xsdXSD Diagram of RelatedPartyDetailElements in schema fixml-partiesreference-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:group name="RelatedPartyDetailElements">
    <xs:sequence>
        <xs:element name="Sub" type="RelatedPtysSubGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="AltPty" type="RelatedPartyAltIDs_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="CntxtPty" type="RelatedContextParties_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="RiskLmt" type="RelationshipRiskLimits_Block_t" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Sub nsA:Sub 0 unbounded
AltPty nsA:AltPty 0 unbounded
CntxtPty nsA:CntxtPty 0 unbounded
RiskLmt nsA:RiskLmt 0 unbounded
