Definition Type: ComplexType
Name: RelSymDerivSecGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-securitiesreference-base-5-0-SP2.xsd
Abstract

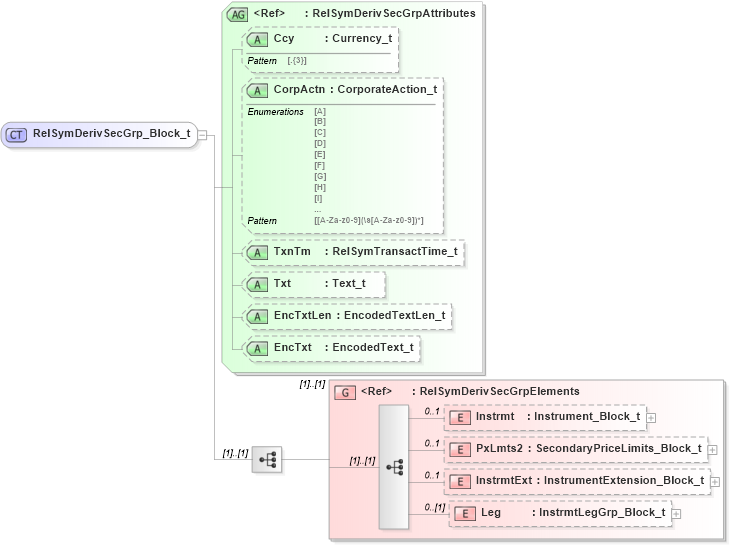

Collapse XSD Schema Diagram:
Drilldown into Leg in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into InstrmtExt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into PxLmts2 in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into RelSymDerivSecGrpElements in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into CorpActn in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Ccy in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into RelSymDerivSecGrpAttributes in schema fixml-securitiesreference-base-5-0-sp2_xsdXSD Diagram of RelSymDerivSecGrp_Block_t in schema fixml-securitiesreference-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="RelSymDerivSecGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="RelSymDerivSecGrp" ComponentType="ImplicitBlockRepeating" Category="SecuritiesReferenceData" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="RelSymDerivSecGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="RelSymDerivSecGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instrmt nsA:Instrmt 0 1
PxLmts2 nsA:PxLmts2 0 1
InstrmtExt nsA:InstrmtExt 0 1
Leg nsA:Leg 0 (1)
<xs:group> nsA:RelSymDerivSecGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Ccy nsA:Ccy Optional
CorpActn nsA:CorpActn Optional
TxnTm nsA:TxnTm Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:RelSym
