Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: RiskLimits_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-partiesreference-base-5-0-SP2.xsd
Abstract

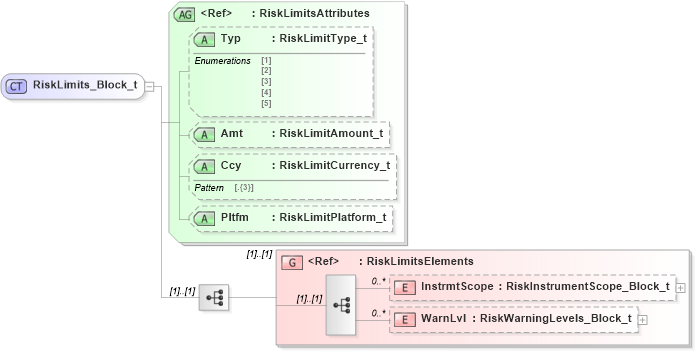

Collapse XSD Schema Diagram:
Drilldown into WarnLvl in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into InstrmtScope in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into RiskLimitsElements in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into Pltfm in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into Ccy in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into Amt in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into Typ in schema fixml-partiesreference-base-5-0-sp2_xsd Drilldown into RiskLimitsAttributes in schema fixml-partiesreference-base-5-0-sp2_xsdXSD Diagram of RiskLimits_Block_t in schema fixml-partiesreference-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="RiskLimits_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="RiskLimits" ComponentType="ImplicitBlockRepeating" Category="PartiesReferenceData" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="RiskLimitsElements" />
    </xs:sequence>
    <xs:attributeGroup ref="RiskLimitsAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InstrmtScope nsA:InstrmtScope 0 unbounded
WarnLvl nsA:WarnLvl 0 unbounded
<xs:group> nsA:RiskLimitsElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Typ nsA:Typ Optional
Amt nsA:Amt Optional
Ccy nsA:Ccy Optional
Pltfm nsA:Pltfm Optional
Collapse Derivation Tree:
Collapse References:
nsA:RiskLmt
