Definition Type: ComplexType
Name: RoutingGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-components-base-5-0-SP2.xsd
Abstract

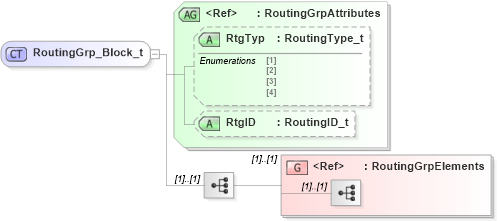

Collapse XSD Schema Diagram:
Drilldown into RoutingGrpElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into RtgID in schema fixml-components-base-5-0-sp2_xsd Drilldown into RtgTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into RoutingGrpAttributes in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of RoutingGrp_Block_t in schema fixml-components-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="RoutingGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="RoutingGrp" ComponentType="ImplicitBlockRepeating" Category="Common" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="RoutingGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="RoutingGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:RoutingGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
RtgTyp nsA:RtgTyp Optional
RtgID nsA:RtgID Optional
Collapse Derivation Tree:
Collapse References:
nsA:Rtg, nsA:Rtg, nsA:Rtg, nsA:Rtg, nsA:Rtg
