Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: SecL
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:SecLstUpdRelSymGrp_Block_t
Containing Schema: fixml-securitiesreference-base-5-0-SP2.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

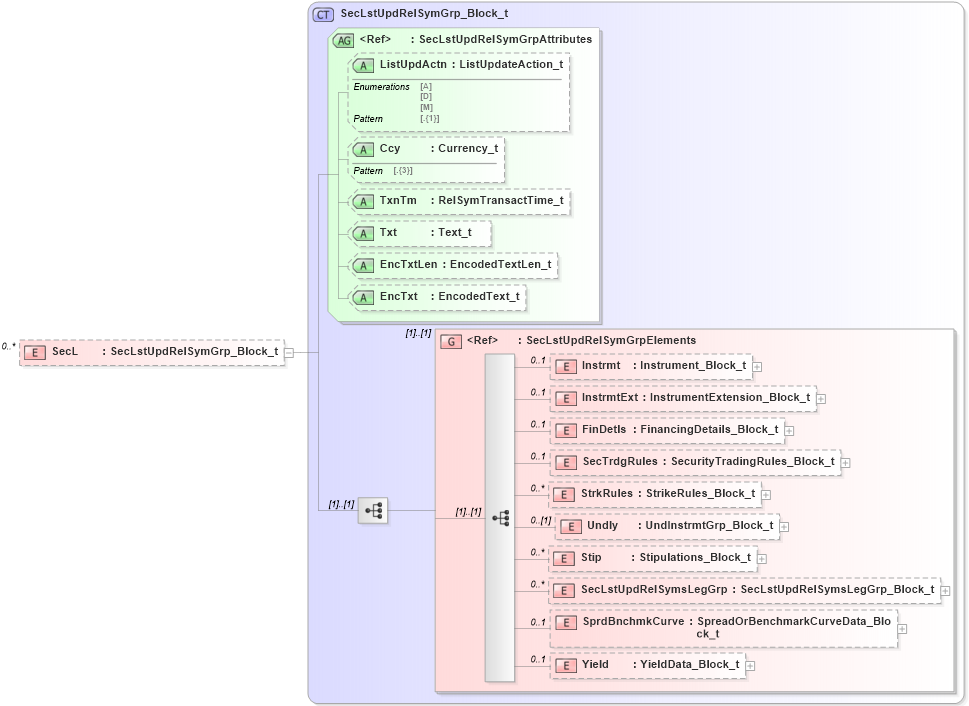

Collapse XSD Schema Diagram:
Drilldown into Yield in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SprdBnchmkCurve in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecLstUpdRelSymsLegGrp in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Stip in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Undly in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into StrkRules in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecTrdgRules in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into FinDetls in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into InstrmtExt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecLstUpdRelSymGrpElements in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Ccy in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into ListUpdActn in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecLstUpdRelSymGrpAttributes in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecLstUpdRelSymGrp_Block_t in schema fixml-securitiesreference-base-5-0-sp2_xsdXSD Diagram of SecL in schema fixml-securitiesreference-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="SecL" type="SecLstUpdRelSymGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instrmt nsA:Instrmt 0 1
InstrmtExt nsA:InstrmtExt 0 1
FinDetls nsA:FinDetls 0 1
SecTrdgRules nsA:SecTrdgRules 0 1
StrkRules nsA:StrkRules 0 unbounded
Undly nsA:Undly 0 (1)
Stip nsA:Stip 0 unbounded
SecLstUpdRelSymsLegGrp nsA:SecLstUpdRelSymsLegGrp 0 unbounded
SprdBnchmkCurve nsA:SprdBnchmkCurve 0 1
Yield nsA:Yield 0 1
<xs:group> nsA:SecLstUpdRelSymGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ListUpdActn nsA:ListUpdActn Optional
Ccy nsA:Ccy Optional
TxnTm nsA:TxnTm Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
