Definition Type: ComplexType
Name: SecTypesGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-securitiesreference-base-5-0-SP2.xsd
Abstract

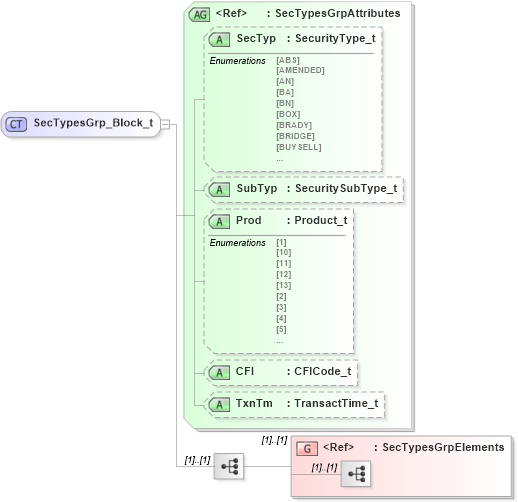

Collapse XSD Schema Diagram:
Drilldown into SecTypesGrpElements in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into CFI in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Prod in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SubTyp in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecTyp in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecTypesGrpAttributes in schema fixml-securitiesreference-base-5-0-sp2_xsdXSD Diagram of SecTypesGrp_Block_t in schema fixml-securitiesreference-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="SecTypesGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="SecTypesGrp" ComponentType="ImplicitBlockRepeating" Category="SecuritiesReferenceData" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="SecTypesGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="SecTypesGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:SecTypesGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
SecTyp nsA:SecTyp Optional
SubTyp nsA:SubTyp Optional
Prod nsA:Prod Optional
CFI nsA:CFI Optional
TxnTm nsA:TxnTm Optional
Collapse Derivation Tree:
Collapse References:
nsA:SecT
