Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: SecurityStatus_message_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:Abstract_message_t
Containing Schema: fixml-securitiesreference-base-5-0-SP2.xsd
Abstract
Documentation:
SecurityStatus can be found in Volume3 of the specification

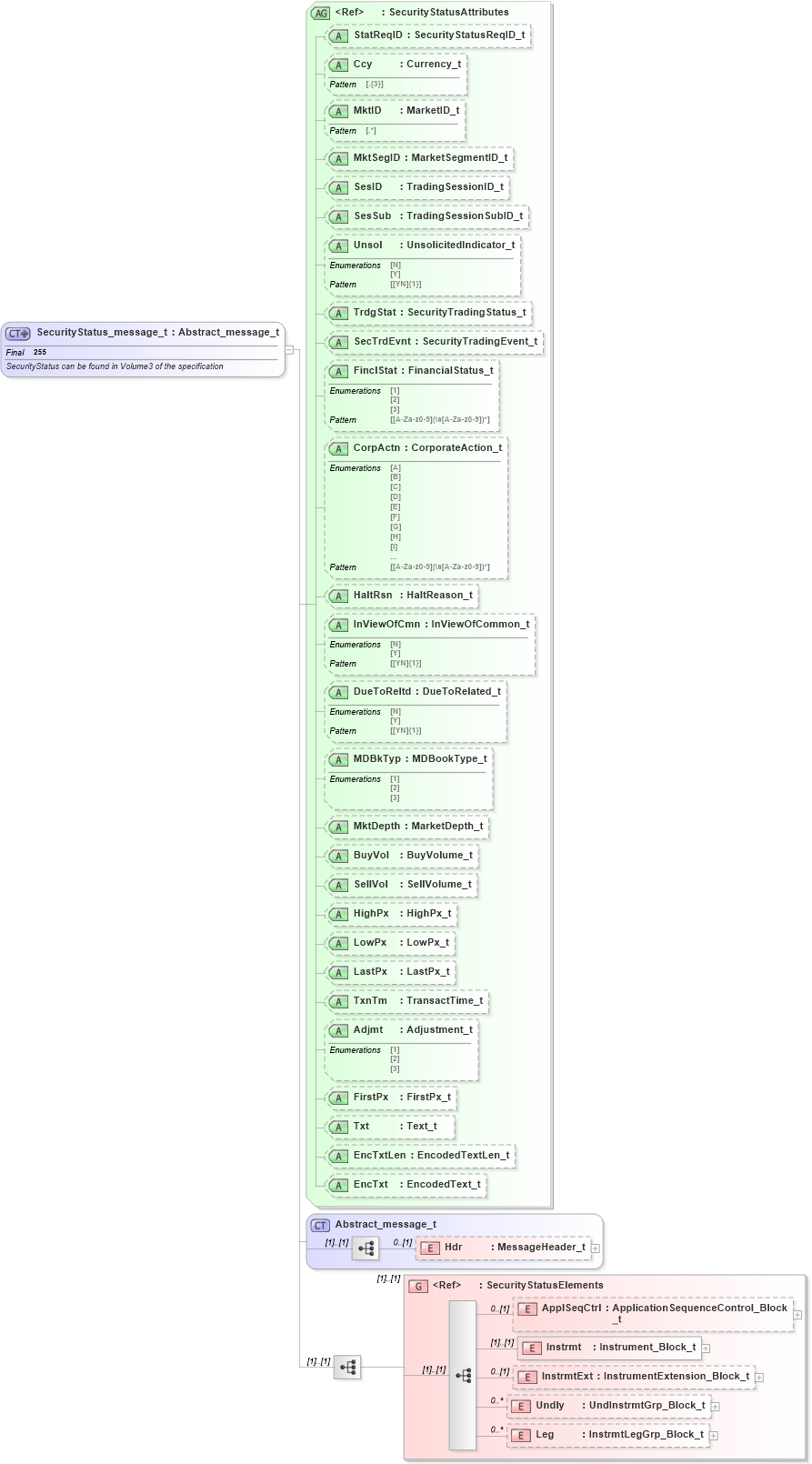

Collapse XSD Schema Diagram:
Drilldown into Leg in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Undly in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into InstrmtExt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into ApplSeqCtrl in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecurityStatusElements in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into FirstPx in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Adjmt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into LastPx in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into LowPx in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into HighPx in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SellVol in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into BuyVol in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into MktDepth in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into MDBkTyp in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into DueToReltd in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into InViewOfCmn in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into HaltRsn in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into CorpActn in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into FinclStat in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecTrdEvnt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into TrdgStat in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Unsol in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SesSub in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SesID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into MktSegID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into MktID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Ccy in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into StatReqID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecurityStatusAttributes in schema fixml-securitiesreference-base-5-0-sp2_xsdXSD Diagram of SecurityStatus_message_t in schema fixml-securitiesreference-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="SecurityStatus_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">SecurityStatus can be found in Volume3 of the specification </xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="SecurityStatus" ComponentType="Message" MsgID="39" Section="Pre Trade" Category="SecuritiesReferenceData" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="SecurityStatusElements" />
            </xs:sequence>
            <xs:attributeGroup ref="SecurityStatusAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
ApplSeqCtrl nsA:ApplSeqCtrl 0 (1)
Instrmt nsA:Instrmt (1) (1)
InstrmtExt nsA:InstrmtExt 0 (1)
Undly nsA:Undly 0 unbounded
Leg nsA:Leg 0 unbounded
<xs:group> nsA:SecurityStatusElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
StatReqID nsA:StatReqID Optional
Ccy nsA:Ccy Optional
MktID nsA:MktID Optional
MktSegID nsA:MktSegID Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
Unsol nsA:Unsol Optional
TrdgStat nsA:TrdgStat Optional
SecTrdEvnt nsA:SecTrdEvnt Optional
FinclStat nsA:FinclStat Optional
CorpActn nsA:CorpActn Optional
HaltRsn nsA:HaltRsn Optional
InViewOfCmn nsA:InViewOfCmn Optional
DueToReltd nsA:DueToReltd Optional
MDBkTyp nsA:MDBkTyp Optional
MktDepth nsA:MktDepth Optional
BuyVol nsA:BuyVol Optional
SellVol nsA:SellVol Optional
HighPx nsA:HighPx Optional
LowPx nsA:LowPx Optional
LastPx nsA:LastPx Optional
TxnTm nsA:TxnTm Optional
Adjmt nsA:Adjmt Optional
FirstPx nsA:FirstPx Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:SecStat
