Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: SecurityTypeRequestAttributes
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-securitiesreference-base-5-0-SP2.xsd

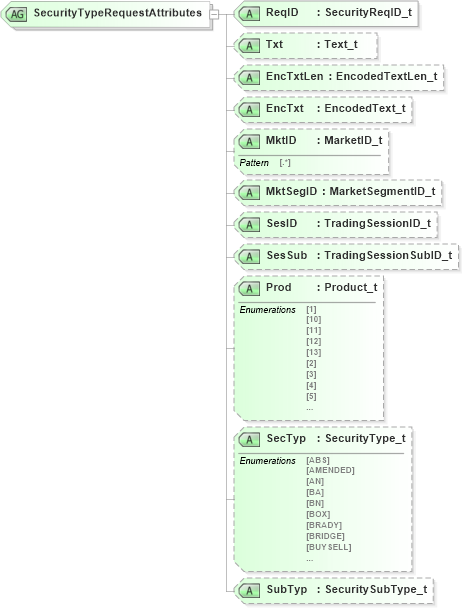

Collapse XSD Schema Diagram:
Drilldown into SubTyp in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SecTyp in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Prod in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SesSub in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into SesID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into MktSegID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into MktID in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-securitiesreference-base-5-0-sp2_xsd Drilldown into ReqID in schema fixml-securitiesreference-base-5-0-sp2_xsdXSD Diagram of SecurityTypeRequestAttributes in schema fixml-securitiesreference-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="SecurityTypeRequestAttributes">
    <xs:attribute name="ReqID" type="SecurityReqID_t" use="required" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
    <xs:attribute name="MktID" type="MarketID_t" use="optional" />
    <xs:attribute name="MktSegID" type="MarketSegmentID_t" use="optional" />
    <xs:attribute name="SesID" type="TradingSessionID_t" use="optional" />
    <xs:attribute name="SesSub" type="TradingSessionSubID_t" use="optional" />
    <xs:attribute name="Prod" type="Product_t" use="optional" />
    <xs:attribute name="SecTyp" type="SecurityType_t" use="optional" />
    <xs:attribute name="SubTyp" type="SecuritySubType_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
MktID nsA:MktID Optional
MktSegID nsA:MktSegID Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
Prod nsA:Prod Optional
SecTyp nsA:SecTyp Optional
SubTyp nsA:SubTyp Optional
