Definition Type: ComplexType
Name: SettlementObligationReport_message_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:Abstract_message_t
Containing Schema: fixml-settlement-base-5-0-SP2.xsd
Abstract
Documentation:
SettlementObligationReport can be found in Volume5 of the specification

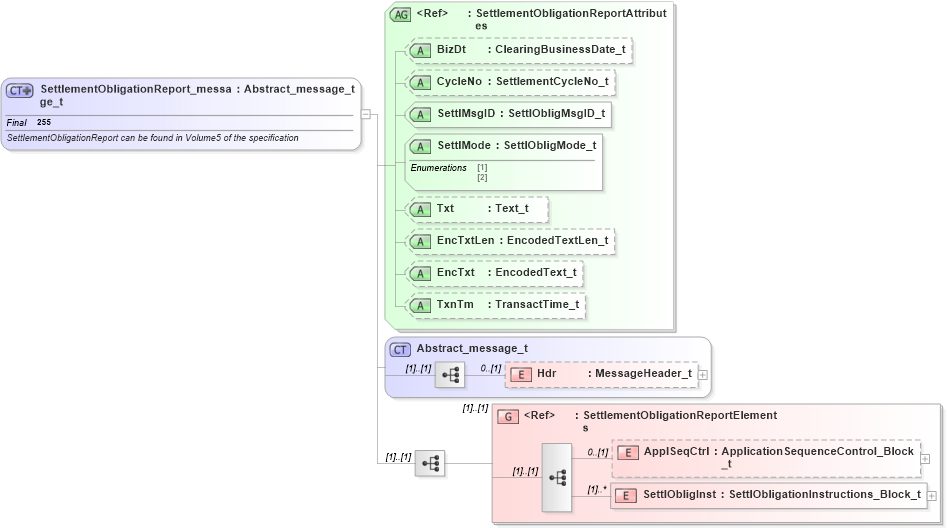

Collapse XSD Schema Diagram:
Drilldown into SettlObligInst in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into ApplSeqCtrl in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlementObligationReportElements in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into Hdr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Abstract_message_t in schema fixml-components-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlMode in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlMsgID in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into CycleNo in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into BizDt in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlementObligationReportAttributes in schema fixml-settlement-base-5-0-sp2_xsdXSD Diagram of SettlementObligationReport_message_t in schema fixml-settlement-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="SettlementObligationReport_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">SettlementObligationReport can be found in Volume5 of the specification </xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="SettlementObligationReport" ComponentType="Message" MsgID="102" Section="Post Trade" Category="SettlementInstruction" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="SettlementObligationReportElements" />
            </xs:sequence>
            <xs:attributeGroup ref="SettlementObligationReportAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
ApplSeqCtrl nsA:ApplSeqCtrl 0 (1)
SettlObligInst nsA:SettlObligInst (1) unbounded
<xs:group> nsA:SettlementObligationReportElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
BizDt nsA:BizDt Optional
CycleNo nsA:CycleNo Optional
SettlMsgID nsA:SettlMsgID Required
SettlMode nsA:SettlMode Required
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
TxnTm nsA:TxnTm Optional
Collapse Derivation Tree:
Collapse References:
nsA:SettlObligation
