Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: SettlementObligationReportAttributes
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-settlement-base-5-0-SP2.xsd

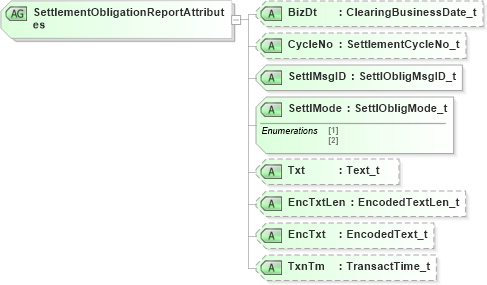

Collapse XSD Schema Diagram:
Drilldown into TxnTm in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlMode in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlMsgID in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into CycleNo in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into BizDt in schema fixml-settlement-base-5-0-sp2_xsdXSD Diagram of SettlementObligationReportAttributes in schema fixml-settlement-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="SettlementObligationReportAttributes">
    <xs:attribute name="BizDt" type="ClearingBusinessDate_t" use="optional" />
    <xs:attribute name="CycleNo" type="SettlementCycleNo_t" use="optional" />
    <xs:attribute name="SettlMsgID" type="SettlObligMsgID_t" use="required" />
    <xs:attribute name="SettlMode" type="SettlObligMode_t" use="required" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
    <xs:attribute name="TxnTm" type="TransactTime_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
BizDt nsA:BizDt Optional
CycleNo nsA:CycleNo Optional
SettlMsgID nsA:SettlMsgID Required
SettlMode nsA:SettlMode Required
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
TxnTm nsA:TxnTm Optional
