Definition Type: ComplexType
Name: SettlObligationInstructions_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-settlement-base-5-0-SP2.xsd
Abstract

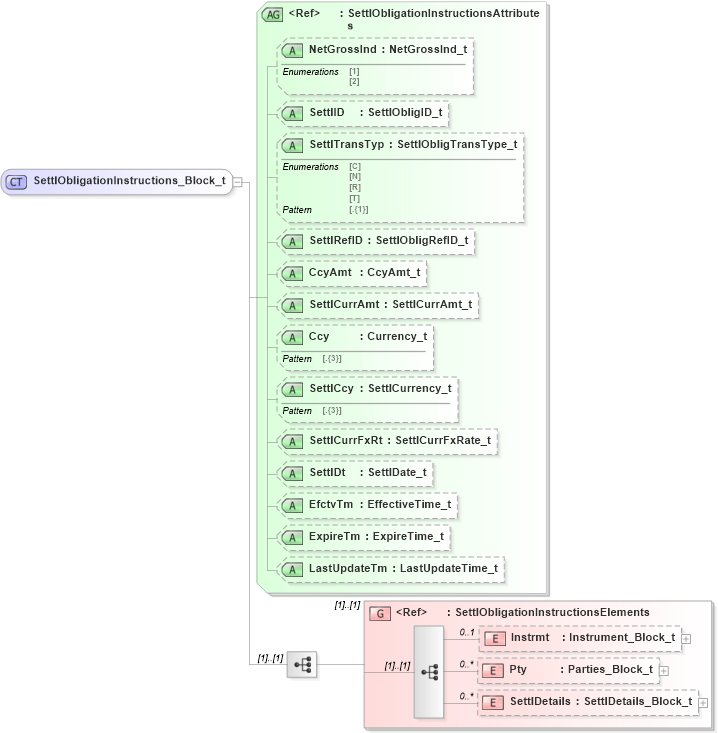

Collapse XSD Schema Diagram:
Drilldown into SettlDetails in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into Instrmt in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlObligationInstructionsElements in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into LastUpdateTm in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into ExpireTm in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into EfctvTm in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlDt in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlCurrFxRt in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlCcy in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into Ccy in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlCurrAmt in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into CcyAmt in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlRefID in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlTransTyp in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlID in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into NetGrossInd in schema fixml-settlement-base-5-0-sp2_xsd Drilldown into SettlObligationInstructionsAttributes in schema fixml-settlement-base-5-0-sp2_xsdXSD Diagram of SettlObligationInstructions_Block_t in schema fixml-settlement-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="SettlObligationInstructions_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="SettlObligationInstructions" ComponentType="ImplicitBlockRepeating" Category="SettlementInstruction" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="SettlObligationInstructionsElements" />
    </xs:sequence>
    <xs:attributeGroup ref="SettlObligationInstructionsAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instrmt nsA:Instrmt 0 1
Pty nsA:Pty 0 unbounded
SettlDetails nsA:SettlDetails 0 unbounded
<xs:group> nsA:SettlObligationInstructionsElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
NetGrossInd nsA:NetGrossInd Optional
SettlID nsA:SettlID Optional
SettlTransTyp nsA:SettlTransTyp Optional
SettlRefID nsA:SettlRefID Optional
CcyAmt nsA:CcyAmt Optional
SettlCurrAmt nsA:SettlCurrAmt Optional
Ccy nsA:Ccy Optional
SettlCcy nsA:SettlCcy Optional
SettlCurrFxRt nsA:SettlCurrFxRt Optional
SettlDt nsA:SettlDt Optional
EfctvTm nsA:EfctvTm Optional
ExpireTm nsA:ExpireTm Optional
LastUpdateTm nsA:LastUpdateTm Optional
Collapse Derivation Tree:
Collapse References:
nsA:SettlObligInst
