Definition Type: ComplexType
Name: SideCrossOrdCxlGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-crossorders-base-5-0-SP2.xsd
Abstract

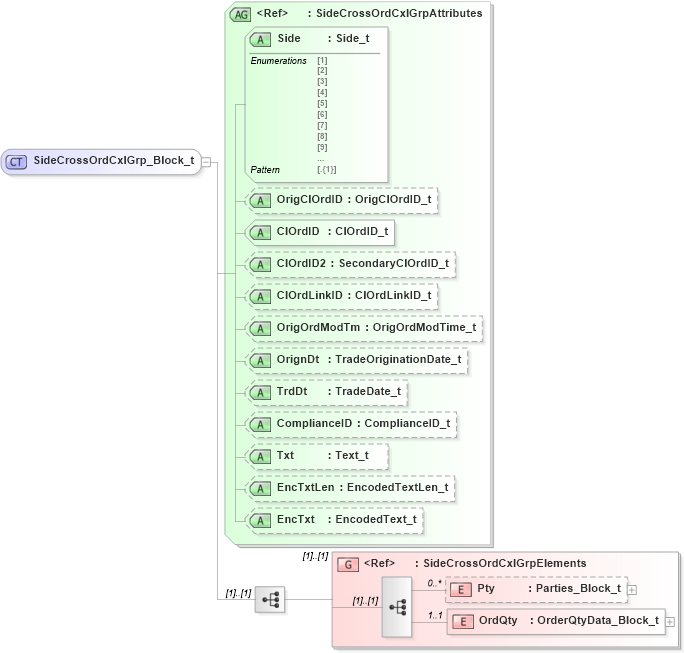

Collapse XSD Schema Diagram:
Drilldown into OrdQty in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into SideCrossOrdCxlGrpElements in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into ComplianceID in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into TrdDt in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into OrignDt in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into OrigOrdModTm in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into ClOrdLinkID in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into ClOrdID2 in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into ClOrdID in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into OrigClOrdID in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into Side in schema fixml-crossorders-base-5-0-sp2_xsd Drilldown into SideCrossOrdCxlGrpAttributes in schema fixml-crossorders-base-5-0-sp2_xsdXSD Diagram of SideCrossOrdCxlGrp_Block_t in schema fixml-crossorders-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="SideCrossOrdCxlGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="SideCrossOrdCxlGrp" ComponentType="ImplicitBlockRepeating" Category="CrossOrders" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="SideCrossOrdCxlGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="SideCrossOrdCxlGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Pty nsA:Pty 0 unbounded
OrdQty nsA:OrdQty 1 1
<xs:group> nsA:SideCrossOrdCxlGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Side nsA:Side Required
OrigClOrdID nsA:OrigClOrdID Optional
ClOrdID nsA:ClOrdID Required
ClOrdID2 nsA:ClOrdID2 Optional
ClOrdLinkID nsA:ClOrdLinkID Optional
OrigOrdModTm nsA:OrigOrdModTm Optional
OrignDt nsA:OrignDt Optional
TrdDt nsA:TrdDt Optional
ComplianceID nsA:ComplianceID Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:SideCrossCxl
