Definition Type: ComplexType
Name: StrmAsgnRptInstrmtGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-marketdata-base-5-0-SP2.xsd
Abstract

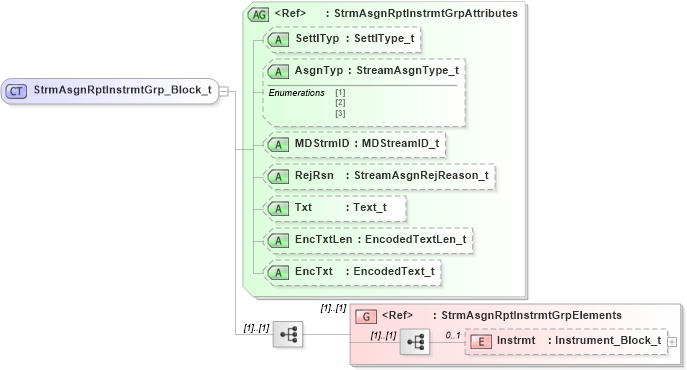

Collapse XSD Schema Diagram:
Drilldown into Instrmt in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into StrmAsgnRptInstrmtGrpElements in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into RejRsn in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into MDStrmID in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into AsgnTyp in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into SettlTyp in schema fixml-marketdata-base-5-0-sp2_xsd Drilldown into StrmAsgnRptInstrmtGrpAttributes in schema fixml-marketdata-base-5-0-sp2_xsdXSD Diagram of StrmAsgnRptInstrmtGrp_Block_t in schema fixml-marketdata-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="StrmAsgnRptInstrmtGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="StrmAsgnRptInstrmtGrp" ComponentType="ImplicitBlockRepeating" Category="MarketData" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="StrmAsgnRptInstrmtGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="StrmAsgnRptInstrmtGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instrmt nsA:Instrmt 0 1
<xs:group> nsA:StrmAsgnRptInstrmtGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
SettlTyp nsA:SettlTyp Optional
AsgnTyp nsA:AsgnTyp Optional
MDStrmID nsA:MDStrmID Optional
RejRsn nsA:RejRsn Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Instrmts
