Docs for schema item TradeCaptureReportAckElements in Financial Information eXchange (FIX)

Documentation for Financial Information eXchange (FIX)

Definition Type:	Group
Name:	TradeCaptureReportAckElements
Namespace:	http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema:	fixml-tradecapture-base-5-0-SP2.xsd

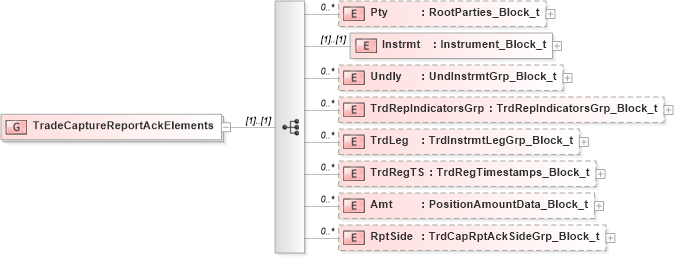

XSD Schema Diagram:

XSD Diagram of TradeCaptureReportAckElements in schema fixml-tradecapture-base-5-0-sp2_xsd (Financial Information eXchange (FIX))

XSD Schema Code:

<xs:group name="TradeCaptureReportAckElements">
    <xs:sequence>
        <xs:element name="Pty" type="RootParties_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Instrmt" type="Instrument_Block_t" />
        <xs:element name="Undly" type="UndInstrmtGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="TrdRepIndicatorsGrp" type="TrdRepIndicatorsGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="TrdLeg" type="TrdInstrmtLegGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="TrdRegTS" type="TrdRegTimestamps_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Amt" type="PositionAmountData_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="RptSide" type="TrdCapRptAckSideGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:group>

Child Elements:

Name	Type	Min Occurs	Max Occurs
Pty	nsA:Pty	0	unbounded
Instrmt	nsA:Instrmt	(1)	(1)
Undly	nsA:Undly	0	unbounded
TrdRepIndicatorsGrp	nsA:TrdRepIndicatorsGrp	0	unbounded
TrdLeg	nsA:TrdLeg	0	unbounded
TrdRegTS	nsA:TrdRegTS	0	unbounded
Amt	nsA:Amt	0	unbounded
RptSide	nsA:RptSide	0	unbounded
