Documentation for Financial Information eXchange (FIX)
Definition Type: Group
Name: TrdCapRptAckSideGrpElements
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-tradecapture-base-5-0-SP2.xsd

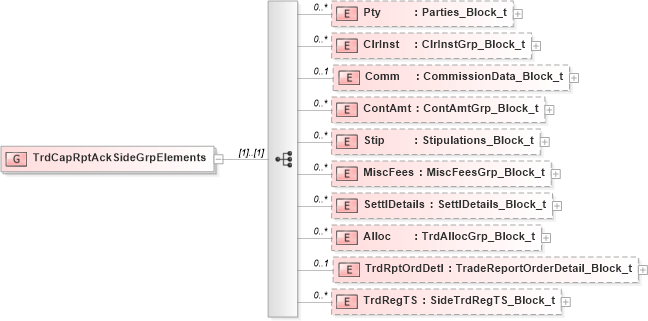

Collapse XSD Schema Diagram:
Drilldown into TrdRegTS in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into TrdRptOrdDetl in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Alloc in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into SettlDetails in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into MiscFees in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Stip in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ContAmt in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Comm in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into ClrInst in schema fixml-tradecapture-base-5-0-sp2_xsd Drilldown into Pty in schema fixml-tradecapture-base-5-0-sp2_xsdXSD Diagram of TrdCapRptAckSideGrpElements in schema fixml-tradecapture-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:group name="TrdCapRptAckSideGrpElements">
    <xs:sequence>
        <xs:element name="Pty" type="Parties_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="ClrInst" type="ClrInstGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Comm" type="CommissionData_Block_t" minOccurs="0" maxOccurs="1" />
        <xs:element name="ContAmt" type="ContAmtGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Stip" type="Stipulations_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="MiscFees" type="MiscFeesGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="SettlDetails" type="SettlDetails_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Alloc" type="TrdAllocGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="TrdRptOrdDetl" type="TradeReportOrderDetail_Block_t" minOccurs="0" maxOccurs="1" />
        <xs:element name="TrdRegTS" type="SideTrdRegTS_Block_t" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Pty nsA:Pty 0 unbounded
ClrInst nsA:ClrInst 0 unbounded
Comm nsA:Comm 0 1
ContAmt nsA:ContAmt 0 unbounded
Stip nsA:Stip 0 unbounded
MiscFees nsA:MiscFees 0 unbounded
SettlDetails nsA:SettlDetails 0 unbounded
Alloc nsA:Alloc 0 unbounded
TrdRptOrdDetl nsA:TrdRptOrdDetl 0 1
TrdRegTS nsA:TrdRegTS 0 unbounded
