Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: TrdSessLstGrp
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Type: nsA:TrdSessLstGrp_Block_t
Containing Schema: fixml-marketstructure-base-5-0-SP2.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

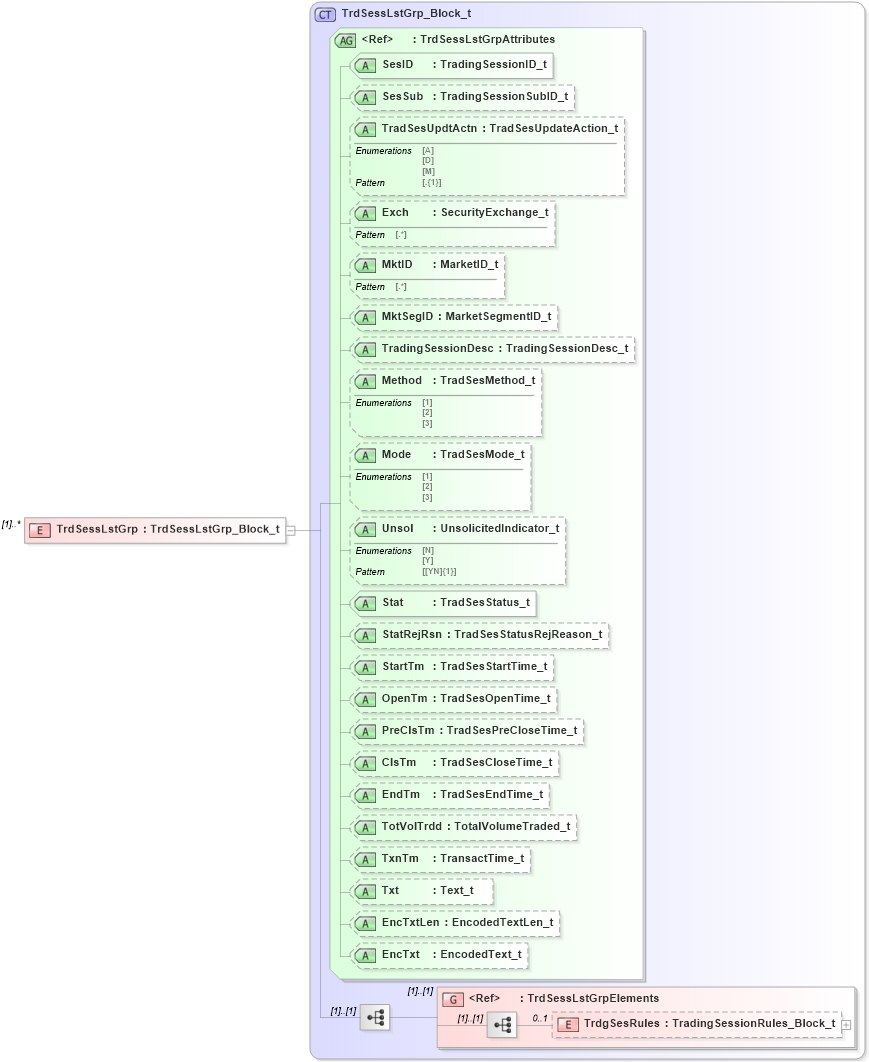

Collapse XSD Schema Diagram:
Drilldown into TrdgSesRules in schema fixml-components-base-5-0-sp2_xsd Drilldown into TrdSessLstGrpElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncTxt in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncTxtLen in schema fixml-components-base-5-0-sp2_xsd Drilldown into Txt in schema fixml-components-base-5-0-sp2_xsd Drilldown into TxnTm in schema fixml-components-base-5-0-sp2_xsd Drilldown into TotVolTrdd in schema fixml-components-base-5-0-sp2_xsd Drilldown into EndTm in schema fixml-components-base-5-0-sp2_xsd Drilldown into ClsTm in schema fixml-components-base-5-0-sp2_xsd Drilldown into PreClsTm in schema fixml-components-base-5-0-sp2_xsd Drilldown into OpenTm in schema fixml-components-base-5-0-sp2_xsd Drilldown into StartTm in schema fixml-components-base-5-0-sp2_xsd Drilldown into StatRejRsn in schema fixml-components-base-5-0-sp2_xsd Drilldown into Stat in schema fixml-components-base-5-0-sp2_xsd Drilldown into Unsol in schema fixml-components-base-5-0-sp2_xsd Drilldown into Mode in schema fixml-components-base-5-0-sp2_xsd Drilldown into Method in schema fixml-components-base-5-0-sp2_xsd Drilldown into TradingSessionDesc in schema fixml-components-base-5-0-sp2_xsd Drilldown into MktSegID in schema fixml-components-base-5-0-sp2_xsd Drilldown into MktID in schema fixml-components-base-5-0-sp2_xsd Drilldown into Exch in schema fixml-components-base-5-0-sp2_xsd Drilldown into TradSesUpdtActn in schema fixml-components-base-5-0-sp2_xsd Drilldown into SesSub in schema fixml-components-base-5-0-sp2_xsd Drilldown into SesID in schema fixml-components-base-5-0-sp2_xsd Drilldown into TrdSessLstGrpAttributes in schema fixml-components-base-5-0-sp2_xsd Drilldown into TrdSessLstGrp_Block_t in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of TrdSessLstGrp in schema fixml-marketstructure-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="TrdSessLstGrp" type="TrdSessLstGrp_Block_t" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TrdgSesRules nsA:TrdgSesRules 0 1
<xs:group> nsA:TrdSessLstGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
SesID nsA:SesID Required
SesSub nsA:SesSub Optional
TradSesUpdtActn nsA:TradSesUpdtActn Optional
Exch nsA:Exch Optional
MktID nsA:MktID Optional
MktSegID nsA:MktSegID Optional
TradingSessionDesc nsA:TradingSessionDesc Optional
Method nsA:Method Optional
Mode nsA:Mode Optional
Unsol nsA:Unsol Optional
Stat nsA:Stat Required
StatRejRsn nsA:StatRejRsn Optional
StartTm nsA:StartTm Optional
OpenTm nsA:OpenTm Optional
PreClsTm nsA:PreClsTm Optional
ClsTm nsA:ClsTm Optional
EndTm nsA:EndTm Optional
TotVolTrdd nsA:TotVolTrdd Optional
TxnTm nsA:TxnTm Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
