Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: UnderlyingInstrument_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-components-base-5-0-SP2.xsd
Abstract

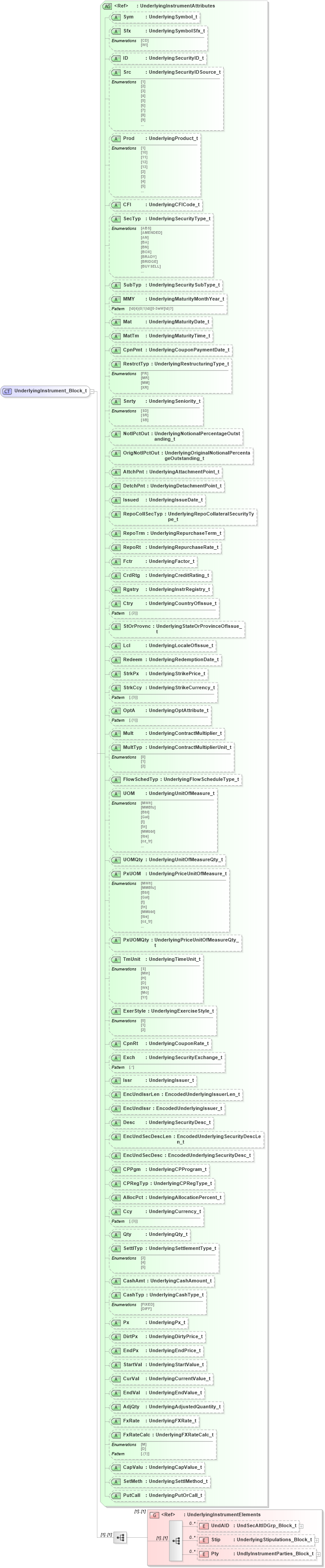

Collapse XSD Schema Diagram:
Drilldown into Pty in schema fixml-components-base-5-0-sp2_xsd Drilldown into Stip in schema fixml-components-base-5-0-sp2_xsd Drilldown into UndAID in schema fixml-components-base-5-0-sp2_xsd Drilldown into UnderlyingInstrumentElements in schema fixml-components-base-5-0-sp2_xsd Drilldown into PutCall in schema fixml-components-base-5-0-sp2_xsd Drilldown into SetMeth in schema fixml-components-base-5-0-sp2_xsd Drilldown into CapValu in schema fixml-components-base-5-0-sp2_xsd Drilldown into FxRateCalc in schema fixml-components-base-5-0-sp2_xsd Drilldown into FxRate in schema fixml-components-base-5-0-sp2_xsd Drilldown into AdjQty in schema fixml-components-base-5-0-sp2_xsd Drilldown into EndVal in schema fixml-components-base-5-0-sp2_xsd Drilldown into CurVal in schema fixml-components-base-5-0-sp2_xsd Drilldown into StartVal in schema fixml-components-base-5-0-sp2_xsd Drilldown into EndPx in schema fixml-components-base-5-0-sp2_xsd Drilldown into DirtPx in schema fixml-components-base-5-0-sp2_xsd Drilldown into Px in schema fixml-components-base-5-0-sp2_xsd Drilldown into CashTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into CashAmt in schema fixml-components-base-5-0-sp2_xsd Drilldown into SettlTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into Qty in schema fixml-components-base-5-0-sp2_xsd Drilldown into Ccy in schema fixml-components-base-5-0-sp2_xsd Drilldown into AllocPct in schema fixml-components-base-5-0-sp2_xsd Drilldown into CPRegTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into CPPgm in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncUndSecDesc in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncUndSecDescLen in schema fixml-components-base-5-0-sp2_xsd Drilldown into Desc in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncUndIssr in schema fixml-components-base-5-0-sp2_xsd Drilldown into EncUndIssrLen in schema fixml-components-base-5-0-sp2_xsd Drilldown into Issr in schema fixml-components-base-5-0-sp2_xsd Drilldown into Exch in schema fixml-components-base-5-0-sp2_xsd Drilldown into CpnRt in schema fixml-components-base-5-0-sp2_xsd Drilldown into ExerStyle in schema fixml-components-base-5-0-sp2_xsd Drilldown into TmUnit in schema fixml-components-base-5-0-sp2_xsd Drilldown into PxUOMQty in schema fixml-components-base-5-0-sp2_xsd Drilldown into PxUOM in schema fixml-components-base-5-0-sp2_xsd Drilldown into UOMQty in schema fixml-components-base-5-0-sp2_xsd Drilldown into UOM in schema fixml-components-base-5-0-sp2_xsd Drilldown into FlowSchedTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into MultTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into Mult in schema fixml-components-base-5-0-sp2_xsd Drilldown into OptA in schema fixml-components-base-5-0-sp2_xsd Drilldown into StrkCcy in schema fixml-components-base-5-0-sp2_xsd Drilldown into StrkPx in schema fixml-components-base-5-0-sp2_xsd Drilldown into Redeem in schema fixml-components-base-5-0-sp2_xsd Drilldown into Lcl in schema fixml-components-base-5-0-sp2_xsd Drilldown into StOrProvnc in schema fixml-components-base-5-0-sp2_xsd Drilldown into Ctry in schema fixml-components-base-5-0-sp2_xsd Drilldown into Rgstry in schema fixml-components-base-5-0-sp2_xsd Drilldown into CrdRtg in schema fixml-components-base-5-0-sp2_xsd Drilldown into Fctr in schema fixml-components-base-5-0-sp2_xsd Drilldown into RepoRt in schema fixml-components-base-5-0-sp2_xsd Drilldown into RepoTrm in schema fixml-components-base-5-0-sp2_xsd Drilldown into RepoCollSecTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into Issued in schema fixml-components-base-5-0-sp2_xsd Drilldown into DetchPnt in schema fixml-components-base-5-0-sp2_xsd Drilldown into AttchPnt in schema fixml-components-base-5-0-sp2_xsd Drilldown into OrigNotlPctOut in schema fixml-components-base-5-0-sp2_xsd Drilldown into NotlPctOut in schema fixml-components-base-5-0-sp2_xsd Drilldown into Snrty in schema fixml-components-base-5-0-sp2_xsd Drilldown into RestrctTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into CpnPmt in schema fixml-components-base-5-0-sp2_xsd Drilldown into MatTm in schema fixml-components-base-5-0-sp2_xsd Drilldown into Mat in schema fixml-components-base-5-0-sp2_xsd Drilldown into MMY in schema fixml-components-base-5-0-sp2_xsd Drilldown into SubTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into SecTyp in schema fixml-components-base-5-0-sp2_xsd Drilldown into CFI in schema fixml-components-base-5-0-sp2_xsd Drilldown into Prod in schema fixml-components-base-5-0-sp2_xsd Drilldown into Src in schema fixml-components-base-5-0-sp2_xsd Drilldown into ID in schema fixml-components-base-5-0-sp2_xsd Drilldown into Sfx in schema fixml-components-base-5-0-sp2_xsd Drilldown into Sym in schema fixml-components-base-5-0-sp2_xsd Drilldown into UnderlyingInstrumentAttributes in schema fixml-components-base-5-0-sp2_xsdXSD Diagram of UnderlyingInstrument_Block_t in schema fixml-components-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="UnderlyingInstrument_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="UnderlyingInstrument" ComponentType="Block" Category="Common" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="UnderlyingInstrumentElements" />
    </xs:sequence>
    <xs:attributeGroup ref="UnderlyingInstrumentAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UndAID nsA:UndAID 0 unbounded
Stip nsA:Stip 0 unbounded
Pty nsA:Pty 0 unbounded
<xs:group> nsA:UnderlyingInstrumentElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Sym nsA:Sym Optional
Sfx nsA:Sfx Optional
ID nsA:ID Optional
Src nsA:Src Optional
Prod nsA:Prod Optional
CFI nsA:CFI Optional
SecTyp nsA:SecTyp Optional
SubTyp nsA:SubTyp Optional
MMY nsA:MMY Optional
Mat nsA:Mat Optional
MatTm nsA:MatTm Optional
CpnPmt nsA:CpnPmt Optional
RestrctTyp nsA:RestrctTyp Optional
Snrty nsA:Snrty Optional
NotlPctOut nsA:NotlPctOut Optional
OrigNotlPctOut nsA:OrigNotlPctOut Optional
AttchPnt nsA:AttchPnt Optional
DetchPnt nsA:DetchPnt Optional
Issued nsA:Issued Optional
RepoCollSecTyp nsA:RepoCollSecTyp Optional
RepoTrm nsA:RepoTrm Optional
RepoRt nsA:RepoRt Optional
Fctr nsA:Fctr Optional
CrdRtg nsA:CrdRtg Optional
Rgstry nsA:Rgstry Optional
Ctry nsA:Ctry Optional
StOrProvnc nsA:StOrProvnc Optional
Lcl nsA:Lcl Optional
Redeem nsA:Redeem Optional
StrkPx nsA:StrkPx Optional
StrkCcy nsA:StrkCcy Optional
OptA nsA:OptA Optional
Mult nsA:Mult Optional
MultTyp nsA:MultTyp Optional
FlowSchedTyp nsA:FlowSchedTyp Optional
UOM nsA:UOM Optional
UOMQty nsA:UOMQty Optional
PxUOM nsA:PxUOM Optional
PxUOMQty nsA:PxUOMQty Optional
TmUnit nsA:TmUnit Optional
ExerStyle nsA:ExerStyle Optional
CpnRt nsA:CpnRt Optional
Exch nsA:Exch Optional
Issr nsA:Issr Optional
EncUndIssrLen nsA:EncUndIssrLen Optional
EncUndIssr nsA:EncUndIssr Optional
Desc nsA:Desc Optional
EncUndSecDescLen nsA:EncUndSecDescLen Optional
EncUndSecDesc nsA:EncUndSecDesc Optional
CPPgm nsA:CPPgm Optional
CPRegTyp nsA:CPRegTyp Optional
AllocPct nsA:AllocPct Optional
Ccy nsA:Ccy Optional
Qty nsA:Qty Optional
SettlTyp nsA:SettlTyp Optional
CashAmt nsA:CashAmt Optional
CashTyp nsA:CashTyp Optional
Px nsA:Px Optional
DirtPx nsA:DirtPx Optional
EndPx nsA:EndPx Optional
StartVal nsA:StartVal Optional
CurVal nsA:CurVal Optional
EndVal nsA:EndVal Optional
AdjQty nsA:AdjQty Optional
FxRate nsA:FxRate Optional
FxRateCalc nsA:FxRateCalc Optional
CapValu nsA:CapValu Optional
SetMeth nsA:SetMeth Optional
PutCall nsA:PutCall Optional
Collapse Derivation Tree:
Collapse References:
nsA:UndInstrmtGrp_Block_t, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:UndlynsA:Undly, nsA:Undly,
