Definition Type: ComplexType
Name: UndInstrmtCollGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-collateral-base-5-0-SP2.xsd
Abstract

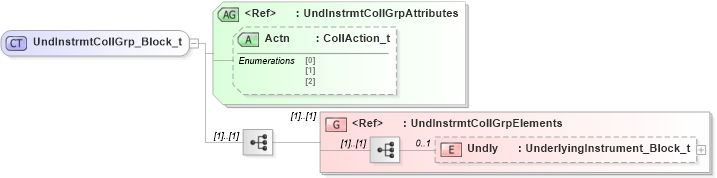

Collapse XSD Schema Diagram:
Drilldown into Undly in schema fixml-collateral-base-5-0-sp2_xsd Drilldown into UndInstrmtCollGrpElements in schema fixml-collateral-base-5-0-sp2_xsd Drilldown into Actn in schema fixml-collateral-base-5-0-sp2_xsd Drilldown into UndInstrmtCollGrpAttributes in schema fixml-collateral-base-5-0-sp2_xsdXSD Diagram of UndInstrmtCollGrp_Block_t in schema fixml-collateral-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="UndInstrmtCollGrp_Block_t">
    <xs:annotation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="UndInstrmtCollGrp" ComponentType="ImplicitBlockRepeating" Category="CollateralManagement" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="UndInstrmtCollGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="UndInstrmtCollGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Undly nsA:Undly 0 1
<xs:group> nsA:UndInstrmtCollGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Actn nsA:Actn Optional
Collapse Derivation Tree:
Collapse References:
nsA:UndColl, nsA:UndColl, nsA:UndColl
