Documentation for Financial Information eXchange (FIX)
Definition Type: SimpleType
Name: UnitOfMeasure_enum_t
Namespace: http://www.fixprotocol.org/FIXML-5-0-SP2
Containing Schema: fixml-fields-base-5-0-SP2.xsd
Documentation:
The unit of measure of the underlying commodity upon which the contract is based. Two groups of units of measure enumerations are supported. Fixed Magnitude UOMs are primarily used in energy derivatives and specify a magnitude (such as, MM, Kilo, M, etc.) and the dimension (such as, watt hours, BTU's) to produce standard fixed measures (such as MWh - Megawatt-hours, MMBtu - One million BTUs). The second group, Variable Quantity UOMs, specifies the dimension as a single unit without a magnitude (or more accurately a magnitude of one) and uses the UnitOfMeasureQty(1147) field to define the quantity of units per contract. Variable Quantity UOMs are used for both commodities (such as lbs of lean cattle, bushels of corn, ounces of gold) and financial futures. Examples: For lean cattle futures contracts, a UnitOfMeasure of 'lbs' with a UnitOfMeasureQty(1147) of 40,000, means each lean cattle futures contract represents 40,000 lbs of lean cattle. For Eurodollars futures contracts, a UnitOfMeasure of USD with a UnitOfMeasureQty(1147) of 1,000,000, means a Eurodollar futures contract represents 1,000,000 USD. For gold futures contracts, a UnitOfMeasure is oz_tr (Troy ounce) with a UnitOfMeasureQty(1147) of 1,000, means each gold futures contract represents 1,000 troy ounces of gold.
Collapse XSD Schema Diagram:

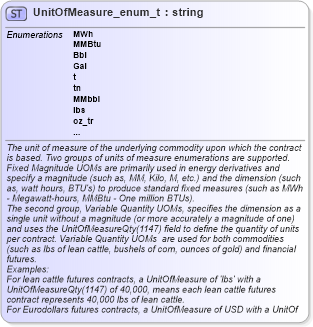

XSD Diagram of UnitOfMeasure_enum_t in schema fixml-fields-base-5-0-sp2_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:simpleType name="UnitOfMeasure_enum_t">
    <xs:annotation>
        <xs:documentation>The unit of measure of the underlying commodity upon which the contract is based. Two groups of units of measure enumerations are supported.
Fixed Magnitude UOMs are primarily used in energy derivatives and specify a magnitude (such as, MM, Kilo, M, etc.) and the dimension (such as, watt hours, BTU's) to produce standard fixed measures (such as MWh - Megawatt-hours, MMBtu - One million BTUs).
The second group, Variable Quantity UOMs, specifies the dimension as a single unit without a magnitude (or more accurately a magnitude of one) and uses the UnitOfMeasureQty(1147) field to define the quantity of units per contract. Variable Quantity UOMs  are used for both commodities  (such as lbs of lean cattle, bushels of corn, ounces of gold) and financial futures.
Examples:
For lean cattle futures contracts, a UnitOfMeasure of 'lbs' with a UnitOfMeasureQty(1147) of 40,000, means each lean cattle futures contract represents 40,000 lbs of lean cattle.
For Eurodollars futures contracts, a UnitOfMeasure of USD with a UnitOfMeasureQty(1147) of 1,000,000, means a Eurodollar futures contract represents 1,000,000 USD.
For gold futures contracts, a UnitOfMeasure is oz_tr (Troy ounce) with a UnitOfMeasureQty(1147) of 1,000, means each gold futures contract represents 1,000 troy ounces of gold.
</xs:documentation>
        <xs:appinfo>
            <fm:Xref Protocol="FIX" name="UnitOfMeasure" ComponentType="Field" Tag="996" Type="String" AbbrName="UOM" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA" />
        </xs:appinfo>
        <xs:appinfo>
            <fm:EnumDoc value="MWh" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Megawatt hours</fm:EnumDoc>
            <fm:EnumDoc value="MMBtu" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">One Million BTU</fm:EnumDoc>
            <fm:EnumDoc value="Bbl" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Barrels</fm:EnumDoc>
            <fm:EnumDoc value="Gal" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Gallons</fm:EnumDoc>
            <fm:EnumDoc value="t" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Metric Tons (aka Tonne)</fm:EnumDoc>
            <fm:EnumDoc value="tn" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Tons (US)</fm:EnumDoc>
            <fm:EnumDoc value="MMbbl" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Million Barrels</fm:EnumDoc>
            <fm:EnumDoc value="lbs" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">pounds</fm:EnumDoc>
            <fm:EnumDoc value="oz_tr" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Troy Ounces</fm:EnumDoc>
            <fm:EnumDoc value="USD" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">US Dollars</fm:EnumDoc>
            <fm:EnumDoc value="Bcf" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Billion cubic feet</fm:EnumDoc>
            <fm:EnumDoc value="Bu" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Bushels</fm:EnumDoc>
            <fm:EnumDoc value="Alw" xmlns:fm="http://www.fixprotocol.org/FIXML-5-0-SP2/METADATA">Allowances</fm:EnumDoc>
        </xs:appinfo>
    </xs:annotation>
    <xs:restriction base="xs:string">
        <xs:enumeration value="MWh" />
        <xs:enumeration value="MMBtu" />
        <xs:enumeration value="Bbl" />
        <xs:enumeration value="Gal" />
        <xs:enumeration value="t" />
        <xs:enumeration value="tn" />
        <xs:enumeration value="MMbbl" />
        <xs:enumeration value="lbs" />
        <xs:enumeration value="oz_tr" />
        <xs:enumeration value="USD" />
        <xs:enumeration value="Bcf" />
        <xs:enumeration value="Bu" />
        <xs:enumeration value="Alw" />
    </xs:restriction>
</xs:simpleType>
Collapse Facets:
Facet Value
Enumeration MWh
Enumeration MMBtu
Enumeration Bbl
Enumeration Gal
Enumeration t
Enumeration tn
Enumeration MMbbl
Enumeration lbs
Enumeration oz_tr
Enumeration USD
Enumeration Bcf
Enumeration Bu
Enumeration Alw
Collapse Derivation Tree:
Collapse References:
nsA:DerivativePriceUnitOfMeasure_t, nsA:DerivativeUnitOfMeasure_t, nsA:LegPriceUnitOfMeasure_t, nsA:LegUnitOfMeasure_t, nsA:PriceUnitOfMeasure_t, nsA:UnderlyingPriceUnitOfMeasure_t, nsA:UnderlyingUnitOfMeasure_t, nsA:UnitOfMeasure_t
