Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: AdjustableDate2
Namespace: http://www.fpml.org/2003/FpML-4-0
Containing Schema: fpml-shared-4-0.xsd
Abstract
Documentation:
A type that is different from AdjustableDate in two regards. First, date adjustments can be specified with either a dateAdjustments element or a reference to an existing dateAdjustments element. Second, it does not require the specification of date adjustments.

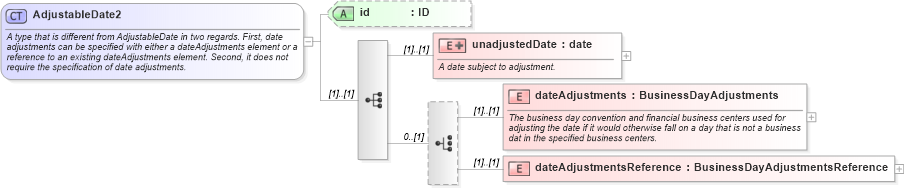

Collapse XSD Schema Diagram:
Drilldown into dateAdjustmentsReference in schema fpml-shared-4-0_xsd Drilldown into dateAdjustments in schema fpml-shared-4-0_xsd Drilldown into unadjustedDate in schema fpml-shared-4-0_xsd Drilldown into id in schema fpml-shared-4-0_xsdXSD Diagram of AdjustableDate2 in schema fpml-shared-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="AdjustableDate2">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that is different from AdjustableDate in two regards. First, date adjustments can be specified with either a dateAdjustments element or a reference to an existing dateAdjustments element. Second, it does not require the specification of date adjustments.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="unadjustedDate">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A date subject to adjustment.</xsd:documentation>
            </xsd:annotation>
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:date">
                        <xsd:attribute name="id" type="xsd:ID" />
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:choice minOccurs="0">
            <xsd:element name="dateAdjustments" type="BusinessDayAdjustments">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The business day convention and financial business centers used for adjusting the date if it would otherwise fall on a day that is not a business dat in the specified business centers.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="dateAdjustmentsReference" type="BusinessDayAdjustmentsReference" />
        </xsd:choice>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
unadjustedDate nsA:unadjustedDate (1) (1)
dateAdjustments nsA:dateAdjustments (1) (1)
dateAdjustmentsReference nsA:dateAdjustmentsReference (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:adjustableDatensA:effectiveDate,
