Definition Type: ComplexType
Name: AdjustableDates
Namespace: http://www.fpml.org/2003/FpML-4-0
Containing Schema: fpml-shared-4-0.xsd
Abstract
Documentation:
A type for defining a series of dates that shall be subject to adjustment if they would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the dates.

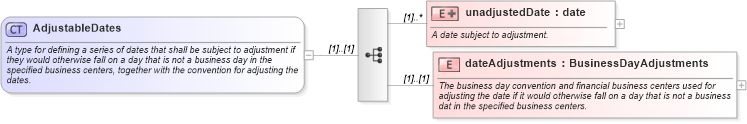

Collapse XSD Schema Diagram:
Drilldown into dateAdjustments in schema fpml-shared-4-0_xsd Drilldown into unadjustedDate in schema fpml-shared-4-0_xsdXSD Diagram of AdjustableDates in schema fpml-shared-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="AdjustableDates">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining a series of dates that shall be subject to adjustment if they would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the dates.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="unadjustedDate" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A date subject to adjustment.</xsd:documentation>
            </xsd:annotation>
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:date">
                        <xsd:attribute name="id" type="xsd:ID" />
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="dateAdjustments" type="BusinessDayAdjustments">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The business day convention and financial business centers used for adjusting the date if it would otherwise fall on a day that is not a business dat in the specified business centers.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
unadjustedDate nsA:unadjustedDate (1) unbounded
dateAdjustments nsA:dateAdjustments (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:adjustableDates, nsA:adjustableDates, nsA:adjustableDates
