Docs for schema item BusinessCenterTime in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	ComplexType
Name:	BusinessCenterTime
Namespace:	http://www.fpml.org/2003/FpML-4-0
Containing Schema:	fpml-shared-4-0.xsd
Abstract
Documentation:	A type for defining a time with respect to a business center location. For example, 11:00am London time.

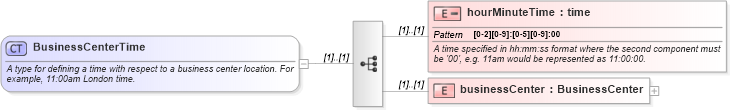

XSD Schema Diagram:

XSD Diagram of BusinessCenterTime in schema fpml-shared-4-0_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:complexType name="BusinessCenterTime">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining a time with respect to a business center location. For example, 11:00am London time.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="hourMinuteTime">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A time specified in hh:mm:ss format where the second component must be '00', e.g. 11am would be represented as 11:00:00.</xsd:documentation>
            </xsd:annotation>
            <xsd:simpleType>
                <xsd:restriction base="xsd:time">
                    <xsd:pattern value="[0-2][0-9]:[0-5][0-9]:00" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:element>
        <xsd:element name="businessCenter" type="BusinessCenter" />
    </xsd:sequence>
</xsd:complexType>

Child Elements:
