Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: equityLeg
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:EquityLeg
Containing Schema: fpml-eqs-4-0.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
The equity amounts of the equity swap

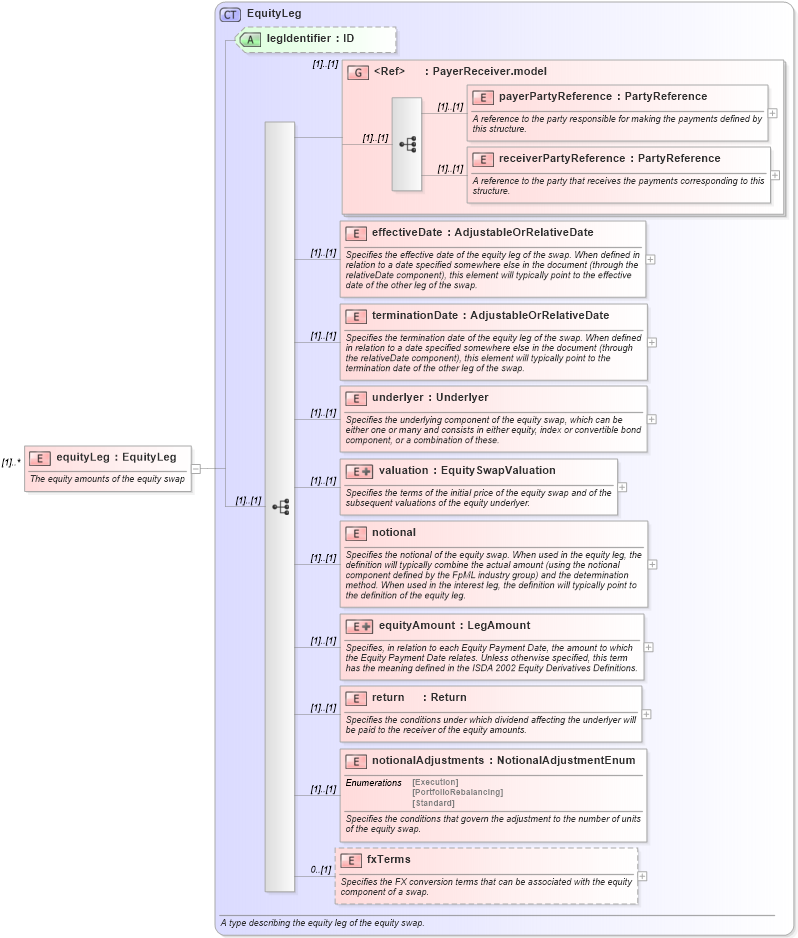

Collapse XSD Schema Diagram:
Drilldown into fxTerms in schema fpml-eqs-4-0_xsd Drilldown into notionalAdjustments in schema fpml-eqs-4-0_xsd Drilldown into return in schema fpml-eqs-4-0_xsd Drilldown into equityAmount in schema fpml-eqs-4-0_xsd Drilldown into notional in schema fpml-eqs-4-0_xsd Drilldown into valuation in schema fpml-eqs-4-0_xsd Drilldown into underlyer in schema fpml-eqs-4-0_xsd Drilldown into terminationDate in schema fpml-eqs-4-0_xsd Drilldown into effectiveDate in schema fpml-eqs-4-0_xsd Drilldown into receiverPartyReference in schema fpml-shared-4-0_xsd Drilldown into payerPartyReference in schema fpml-shared-4-0_xsd Drilldown into PayerReceiver.model in schema fpml-shared-4-0_xsd Drilldown into legIdentifier in schema fpml-eqs-4-0_xsd Drilldown into EquityLeg in schema fpml-eqs-4-0_xsdXSD Diagram of equityLeg in schema fpml-eqs-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="equityLeg" type="EquityLeg" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The equity amounts of the equity swap</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsA:payerPartyReference (1) (1)
receiverPartyReference nsA:receiverPartyReference (1) (1)
effectiveDate nsA:effectiveDate (1) (1)
terminationDate nsA:terminationDate (1) (1)
underlyer nsA:underlyer (1) (1)
valuation nsA:valuation (1) (1)
notional nsA:notional (1) (1)
equityAmount nsA:equityAmount (1) (1)
return nsA:return (1) (1)
notionalAdjustments nsA:notionalAdjustments (1) (1)
fxTerms nsA:fxTerms 0 (1)
<xs:group> nsA:PayerReceiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
legIdentifier nsA:legIdentifier (Optional)
Collapse Derivation Tree:
