Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: exchangedCurrency1
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:Payment
Containing Schema: fpml-fx-4-0.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
This is the first of the two currency flows that define a single leg of a standard foreign exchange transaction.

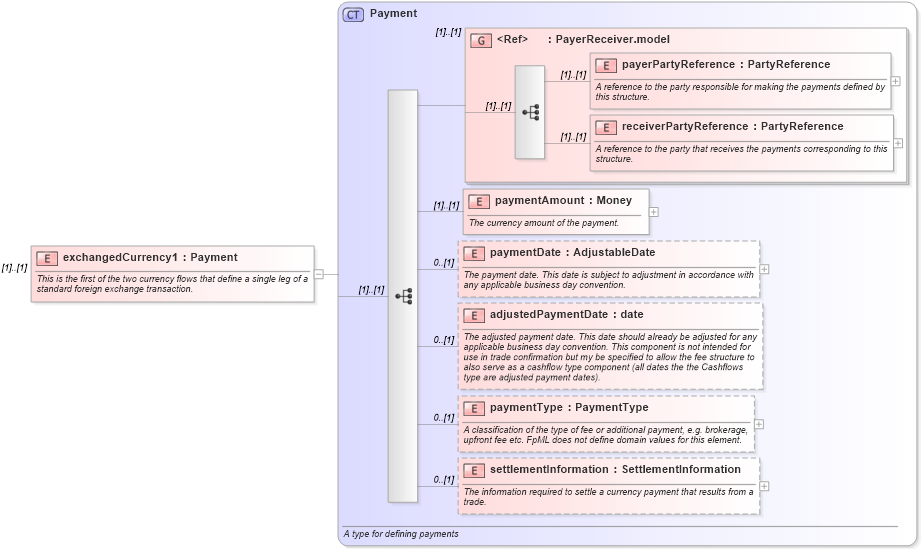

Collapse XSD Schema Diagram:
Drilldown into settlementInformation in schema fpml-shared-4-0_xsd Drilldown into paymentType in schema fpml-shared-4-0_xsd Drilldown into adjustedPaymentDate in schema fpml-shared-4-0_xsd Drilldown into paymentDate in schema fpml-shared-4-0_xsd Drilldown into paymentAmount in schema fpml-shared-4-0_xsd Drilldown into receiverPartyReference in schema fpml-shared-4-0_xsd Drilldown into payerPartyReference in schema fpml-shared-4-0_xsd Drilldown into PayerReceiver.model in schema fpml-shared-4-0_xsd Drilldown into Payment in schema fpml-shared-4-0_xsdXSD Diagram of exchangedCurrency1 in schema fpml-fx-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="exchangedCurrency1" type="Payment">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">This is the first of the two currency flows that define a single leg of a standard foreign exchange transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsA:payerPartyReference (1) (1)
receiverPartyReference nsA:receiverPartyReference (1) (1)
paymentAmount nsA:paymentAmount (1) (1)
paymentDate nsA:paymentDate 0 (1)
adjustedPaymentDate nsA:adjustedPaymentDate 0 (1)
paymentType nsA:paymentType 0 (1)
settlementInformation nsA:settlementInformation 0 (1)
<xs:group> nsA:PayerReceiver.model (1) (1)
Collapse Derivation Tree:
