Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: exchangeRate
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:ExchangeRate
Containing Schema: fpml-fx-4-0.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The rate of exchange between the two currencies.

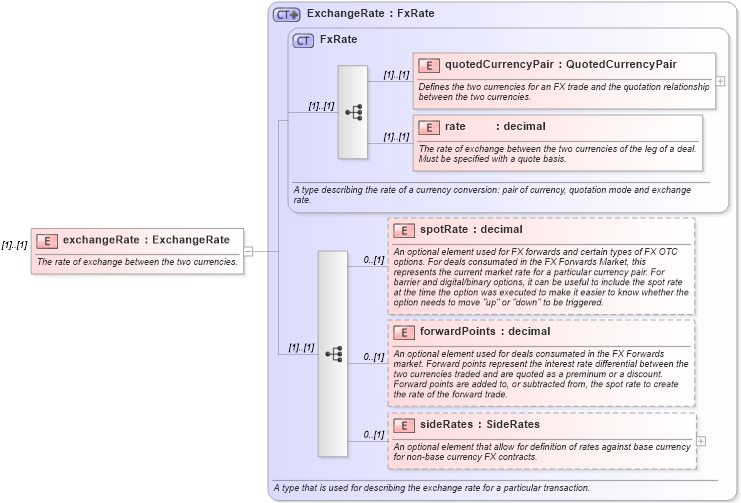

Collapse XSD Schema Diagram:
Drilldown into sideRates in schema fpml-fx-4-0_xsd Drilldown into forwardPoints in schema fpml-fx-4-0_xsd Drilldown into spotRate in schema fpml-fx-4-0_xsd Drilldown into rate in schema fpml-shared-4-0_xsd Drilldown into quotedCurrencyPair in schema fpml-shared-4-0_xsd Drilldown into FxRate in schema fpml-shared-4-0_xsd Drilldown into ExchangeRate in schema fpml-fx-4-0_xsdXSD Diagram of exchangeRate in schema fpml-fx-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="exchangeRate" type="ExchangeRate">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The rate of exchange between the two currencies.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quotedCurrencyPair nsA:quotedCurrencyPair (1) (1)
rate nsA:rate (1) (1)
spotRate nsA:spotRate 0 (1)
forwardPoints nsA:forwardPoints 0 (1)
sideRates nsA:sideRates 0 (1)
Collapse Derivation Tree:
