<xsd:element name="exchangeTradedFund" substitutionGroup="underlyingAsset">
<xsd:annotation>
<xsd:documentation xml:lang="en">Defines the underlying asset when it is an exchange-traded fund.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="UnderlyingAsset">
<xsd:sequence>
<xsd:element name="relatedExchangeId" type="ExchangeId" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">A short form unique identifier for a related exchange. If the element is not present then the exchange shall be the primary exchange on which listed futures and options on the underlying are listed. The term "Exchange" is assumed to have the meaning as defined in the ISDA 2002 Equity Derivatives Definitions.</xsd:documentation>
<xsd:documentation xml:lang="de">Eindeutiges Kürzel einer relevanten Börse. Fehlt dieses Element, gilt die Hauptbörse, an der börsengehandelte Futures- und Optionskontrakte auf den Basiswert notiert sind, als "Börse" im Sinne der ISDA-Definitionen zu Aktienderivaten von 2002.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="optionsExchangeId" type="ExchangeId" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">A short form unique identifier for an exchange on which the reference option contract is listed. This is to address the case where the reference exchange for the future is different than the one for the option. The options Exchange is referenced on share options when Merger Elections are selected as Options Exchange Adjustment.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="fundManager" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">Specifies the fund manager that is in charge of the fund.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

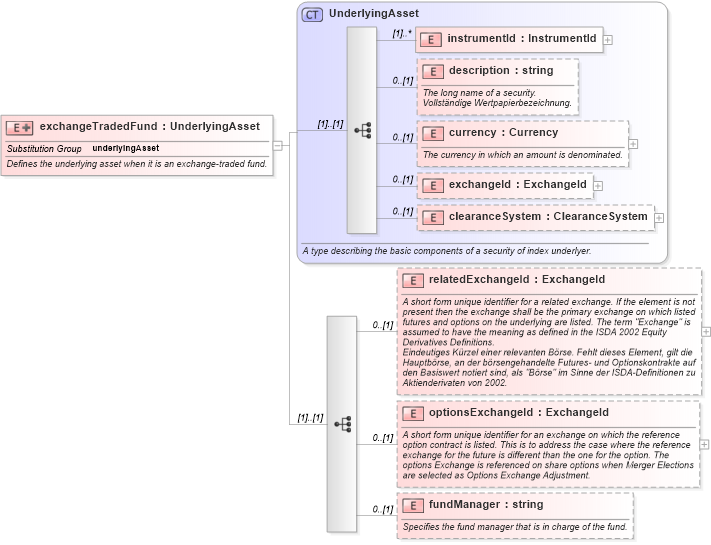

XSD Schema Diagram:
