Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ExerciseFeeSchedule
Namespace: http://www.fpml.org/2003/FpML-4-0
Containing Schema: fpml-shared-4-0.xsd
Abstract
Documentation:
A type to define a fee or schedule of fees to be payable on the exercise of an option. This fee may be defined as an amount or a percentage of the notional exercised.

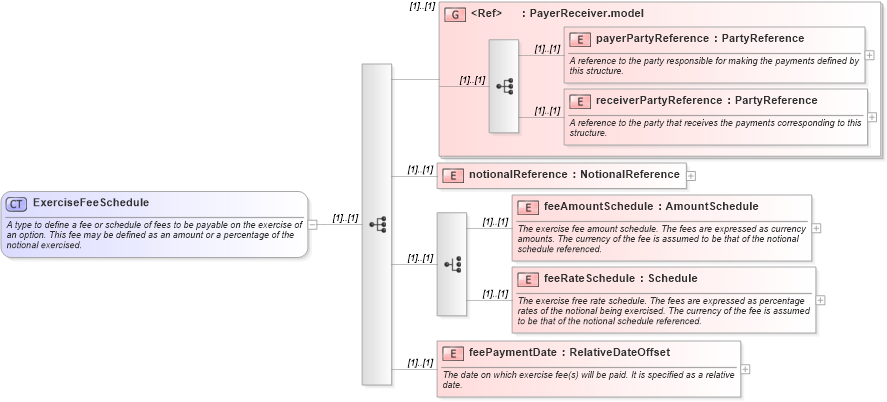

Collapse XSD Schema Diagram:
Drilldown into feePaymentDate in schema fpml-shared-4-0_xsd Drilldown into feeRateSchedule in schema fpml-shared-4-0_xsd Drilldown into feeAmountSchedule in schema fpml-shared-4-0_xsd Drilldown into notionalReference in schema fpml-shared-4-0_xsd Drilldown into receiverPartyReference in schema fpml-shared-4-0_xsd Drilldown into payerPartyReference in schema fpml-shared-4-0_xsd Drilldown into PayerReceiver.model in schema fpml-shared-4-0_xsdXSD Diagram of ExerciseFeeSchedule in schema fpml-shared-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ExerciseFeeSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type to define a fee or schedule of fees to be payable on the exercise of an option. This fee may be defined as an amount or a percentage of the notional exercised.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="PayerReceiver.model" />
        <xsd:element name="notionalReference" type="NotionalReference" />
        <xsd:choice>
            <xsd:element name="feeAmountSchedule" type="AmountSchedule">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The exercise fee amount schedule. The fees are expressed as currency amounts. The currency of the fee is assumed to be that of the notional schedule referenced.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="feeRateSchedule" type="Schedule">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The exercise free rate schedule. The fees are expressed as percentage rates of the notional being exercised. The currency of the fee is assumed to be that of the notional schedule referenced.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="feePaymentDate" type="RelativeDateOffset">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The date on which exercise fee(s) will be paid. It is specified as a relative date.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsA:payerPartyReference (1) (1)
receiverPartyReference nsA:receiverPartyReference (1) (1)
notionalReference nsA:notionalReference (1) (1)
feeAmountSchedule nsA:feeAmountSchedule (1) (1)
feeRateSchedule nsA:feeRateSchedule (1) (1)
feePaymentDate nsA:feePaymentDate (1) (1)
<xs:group> nsA:PayerReceiver.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:exerciseFeeSchedule, nsA:exerciseFeeSchedule
