Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fixedRateSchedule
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:Schedule
Containing Schema: fpml-ird-4-0.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The fixed rate or fixed rate schedule expressed as explicit fixed rates and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments.

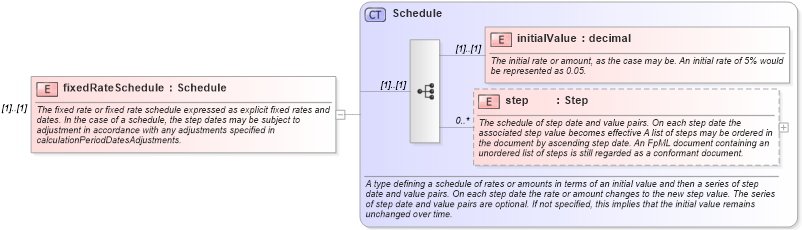

Collapse XSD Schema Diagram:
Drilldown into step in schema fpml-shared-4-0_xsd Drilldown into initialValue in schema fpml-shared-4-0_xsd Drilldown into Schedule in schema fpml-shared-4-0_xsdXSD Diagram of fixedRateSchedule in schema fpml-ird-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fixedRateSchedule" type="Schedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The fixed rate or fixed rate schedule expressed as explicit fixed rates and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsA:initialValue (1) (1)
step nsA:step 0 unbounded
Collapse Derivation Tree:
