Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FXFeature
Namespace: http://www.fpml.org/2003/FpML-4-0
Containing Schema: fpml-eqd-4-0.xsd
Abstract
Documentation:
A type for defining FX features. Typ zur Definition von Devisenbestandteilen.

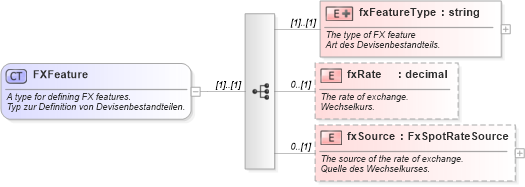

Collapse XSD Schema Diagram:
Drilldown into fxSource in schema fpml-eqd-4-0_xsd Drilldown into fxRate in schema fpml-eqd-4-0_xsd Drilldown into fxFeatureType in schema fpml-eqd-4-0_xsdXSD Diagram of FXFeature in schema fpml-eqd-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FXFeature">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining FX features.</xsd:documentation>
        <xsd:documentation xml:lang="de">Typ zur Definition von Devisenbestandteilen.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="fxFeatureType">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The type of FX feature</xsd:documentation>
                <xsd:documentation xml:lang="de">Art des Devisenbestandteils.</xsd:documentation>
            </xsd:annotation>
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:string">
                        <xsd:attribute name="fxFeatureTypeScheme" type="xsd:anyURI" default="http://www.fpml.org/spec/2003/fxFeatureType-1-0" />
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="fxRate" type="xsd:decimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The rate of exchange.</xsd:documentation>
                <xsd:documentation xml:lang="de">Wechselkurs.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="fxSource" type="FxSpotRateSource" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The source of the rate of exchange.</xsd:documentation>
                <xsd:documentation xml:lang="de">Quelle des Wechselkurses.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fxFeatureType nsA:fxFeatureType (1) (1)
fxRate nsA:fxRate 0 (1)
fxSource nsA:fxSource 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:fxFeature
