Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FXFixing
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:FxSpotRateSource
Containing Schema: fpml-fx-4-0.xsd
Abstract
Documentation:
A type that specifies the source for and timing of a fixing of an exchange rate. This is used in the agreement of non-deliverable forward trades as well as various types of FX OTC options that require observations against a particular rate.

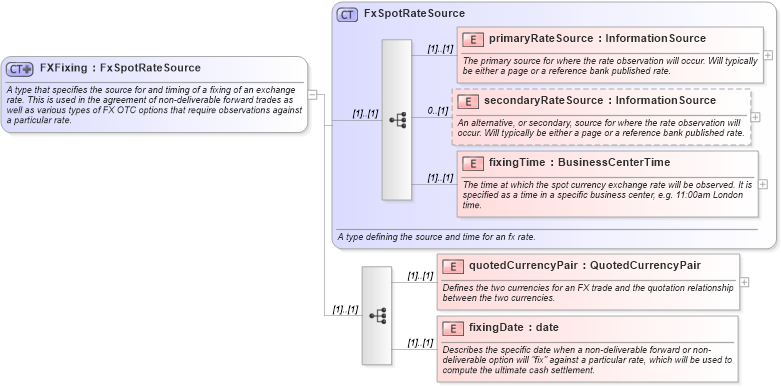

Collapse XSD Schema Diagram:
Drilldown into fixingDate in schema fpml-fx-4-0_xsd Drilldown into quotedCurrencyPair in schema fpml-fx-4-0_xsd Drilldown into fixingTime in schema fpml-shared-4-0_xsd Drilldown into secondaryRateSource in schema fpml-shared-4-0_xsd Drilldown into primaryRateSource in schema fpml-shared-4-0_xsd Drilldown into FxSpotRateSource in schema fpml-shared-4-0_xsdXSD Diagram of FXFixing in schema fpml-fx-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FXFixing">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that specifies the source for and timing of a fixing of an exchange rate. This is used in the agreement of non-deliverable forward trades as well as various types of FX OTC options that require observations against a particular rate.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FxSpotRateSource">
            <xsd:sequence>
                <xsd:element name="quotedCurrencyPair" type="QuotedCurrencyPair">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Defines the two currencies for an FX trade and the quotation relationship between the two currencies.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="fixingDate" type="xsd:date">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Describes the specific date when a non-deliverable forward or non-deliverable option will "fix" against a particular rate, which will be used to compute the ultimate cash settlement.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryRateSource nsA:primaryRateSource (1) (1)
secondaryRateSource nsA:secondaryRateSource 0 (1)
fixingTime nsA:fixingTime (1) (1)
quotedCurrencyPair nsA:quotedCurrencyPair (1) (1)
fixingDate nsA:fixingDate (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:fixing
