Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: referenceInformation
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:ReferenceInformation
Containing Schema: fpml-cd-4-0.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
This element contains all the terms relevant to defining the reference entity and reference obligation(s).

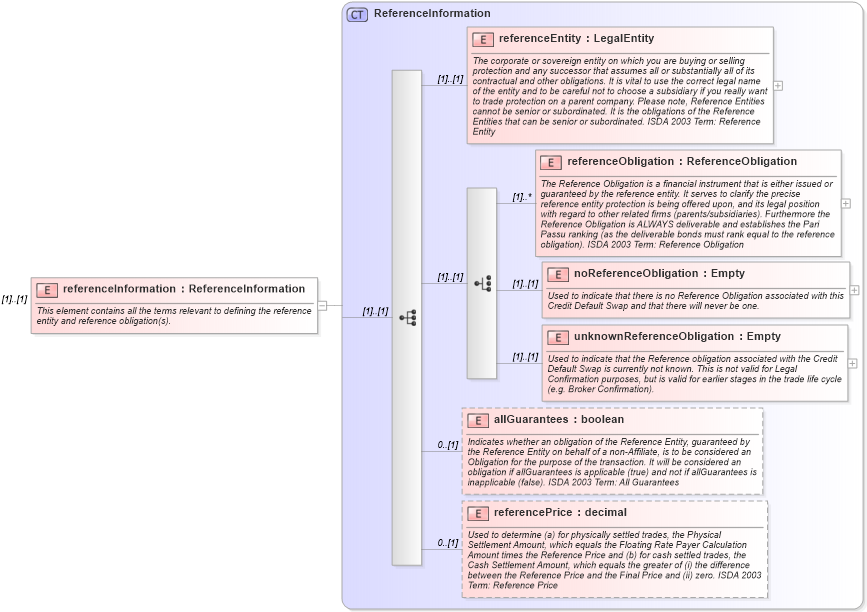

Collapse XSD Schema Diagram:
Drilldown into referencePrice in schema fpml-cd-4-0_xsd Drilldown into allGuarantees in schema fpml-cd-4-0_xsd Drilldown into unknownReferenceObligation in schema fpml-cd-4-0_xsd Drilldown into noReferenceObligation in schema fpml-cd-4-0_xsd Drilldown into referenceObligation in schema fpml-cd-4-0_xsd Drilldown into referenceEntity in schema fpml-cd-4-0_xsd Drilldown into ReferenceInformation in schema fpml-cd-4-0_xsdXSD Diagram of referenceInformation in schema fpml-cd-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="referenceInformation" type="ReferenceInformation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">This element contains all the terms relevant to defining the reference entity and reference obligation(s).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
referenceEntity nsA:referenceEntity (1) (1)
referenceObligation nsA:referenceObligation (1) unbounded
noReferenceObligation nsA:noReferenceObligation (1) (1)
unknownReferenceObligation nsA:unknownReferenceObligation (1) (1)
allGuarantees nsA:allGuarantees 0 (1)
referencePrice nsA:referencePrice 0 (1)
Collapse Derivation Tree:
