Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: RequestMessageHeader
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:MessageHeader
Containing Schema: fpml-msg-4-0.xsd
Abstract
Documentation:
A type refining the generic message header content to make it specific to request messages.

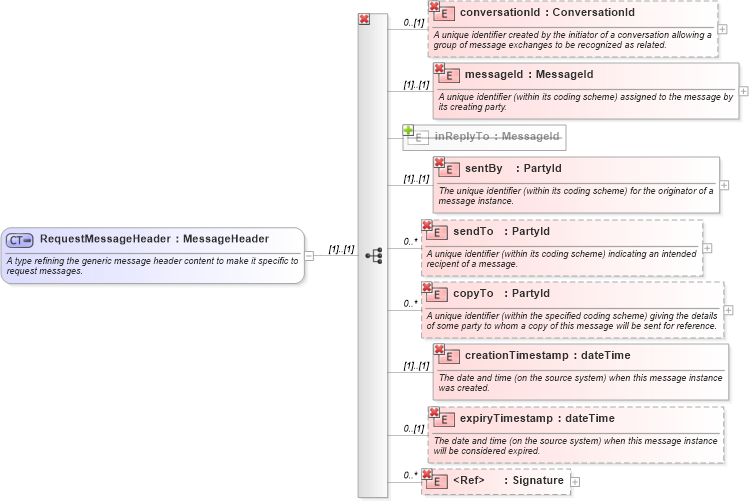

Collapse XSD Schema Diagram:
Drilldown into Signature in schema xmldsig-core-schema_xsd1 Drilldown into expiryTimestamp in schema fpml-msg-4-0_xsd Drilldown into creationTimestamp in schema fpml-msg-4-0_xsd Drilldown into copyTo in schema fpml-msg-4-0_xsd Drilldown into sendTo in schema fpml-msg-4-0_xsd Drilldown into sentBy in schema fpml-msg-4-0_xsd Drilldown into inReplyTo in schema fpml-msg-4-0_xsd Drilldown into messageId in schema fpml-msg-4-0_xsd Drilldown into conversationId in schema fpml-msg-4-0_xsdXSD Diagram of RequestMessageHeader in schema fpml-msg-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RequestMessageHeader">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type refining the generic message header content to make it specific to request messages.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:restriction base="MessageHeader">
            <xsd:sequence>
                <xsd:element name="conversationId" type="ConversationId" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A unique identifier created by the initiator of a conversation allowing a group of message exchanges to be recognized as related.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="messageId" type="MessageId">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A unique identifier (within its coding scheme) assigned to the message by its creating party.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="sentBy" type="PartyId">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The unique identifier (within its coding scheme) for the originator of a message instance.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="sendTo" type="PartyId" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A unique identifier (within its coding scheme) indicating an intended recipent of a message.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="copyTo" type="PartyId" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A unique identifier (within the specified coding scheme) giving the details of some party to whom a copy of this message will be sent for reference.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="creationTimestamp" type="xsd:dateTime">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The date and time (on the source system) when this message instance was created.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="expiryTimestamp" type="xsd:dateTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The date and time (on the source system) when this message instance will be considered expired.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="dsig:Signature" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:restriction>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
conversationId nsA:conversationId 0 (1)
messageId nsA:messageId (1) (1)
inReplyTo nsA:inReplyTo 0 (1)
sentBy nsA:sentBy (1) (1)
sendTo nsA:sendTo 0 unbounded
copyTo nsA:copyTo 0 unbounded
creationTimestamp nsA:creationTimestamp (1) (1)
expiryTimestamp nsA:expiryTimestamp 0 (1)
Signature ds:Signature 0 unbounded
conversationId nsA:conversationId 0 (1)
messageId nsA:messageId (1) (1)
sentBy nsA:sentBy (1) (1)
sendTo nsA:sendTo 0 unbounded
copyTo nsA:copyTo 0 unbounded
creationTimestamp nsA:creationTimestamp (1) (1)
expiryTimestamp nsA:expiryTimestamp 0 (1)
Signature ds:Signature 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:header
