Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: singleUnderlyer
Namespace: http://www.fpml.org/2003/FpML-4-0
Type: nsA:SingleUnderlyer
Containing Schema: fpml-asset-4-0.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Describes the swap's underlyer when it has only one asset component.

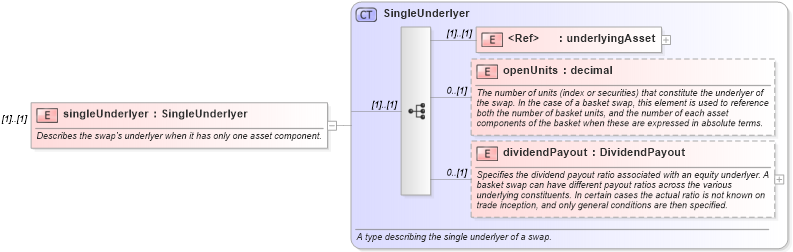

Collapse XSD Schema Diagram:
Drilldown into dividendPayout in schema fpml-asset-4-0_xsd Drilldown into openUnits in schema fpml-asset-4-0_xsd Drilldown into underlyingAsset in schema fpml-asset-4-0_xsd Drilldown into SingleUnderlyer in schema fpml-asset-4-0_xsdXSD Diagram of singleUnderlyer in schema fpml-asset-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="singleUnderlyer" type="SingleUnderlyer">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes the swap's underlyer when it has only one asset component.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
underlyingAsset nsA:underlyingAsset (1) (1)
openUnits nsA:openUnits 0 (1)
dividendPayout nsA:dividendPayout 0 (1)
Collapse Derivation Tree:
