Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: TriggerEvent
Namespace: http://www.fpml.org/2003/FpML-4-0
Containing Schema: fpml-eqd-4-0.xsd
Abstract
Documentation:
Observation point for trigger Beobachtungspunkt für das Trigger-Ereignis.

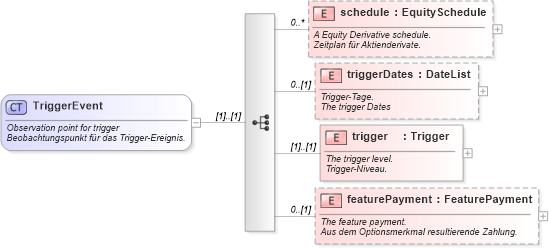

Collapse XSD Schema Diagram:
Drilldown into featurePayment in schema fpml-eqd-4-0_xsd Drilldown into trigger in schema fpml-eqd-4-0_xsd Drilldown into triggerDates in schema fpml-eqd-4-0_xsd Drilldown into schedule in schema fpml-eqd-4-0_xsdXSD Diagram of TriggerEvent in schema fpml-eqd-4-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="TriggerEvent">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Observation point for trigger</xsd:documentation>
        <xsd:documentation xml:lang="de">Beobachtungspunkt für das Trigger-Ereignis.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="schedule" type="EquitySchedule" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A Equity Derivative schedule.</xsd:documentation>
                <xsd:documentation xml:lang="de">Zeitplan für Aktienderivate.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="triggerDates" type="DateList" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="de">Trigger-Tage.</xsd:documentation>
                <xsd:documentation xml:lang="en">The trigger Dates</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="trigger" type="Trigger">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The trigger level.</xsd:documentation>
                <xsd:documentation xml:lang="de">Trigger-Niveau.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="featurePayment" type="FeaturePayment" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The feature payment.</xsd:documentation>
                <xsd:documentation xml:lang="de">Aus dem Optionsmerkmal resultierende Zahlung.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
schedule nsA:schedule 0 unbounded
triggerDates nsA:triggerDates 0 (1)
trigger nsA:trigger (1) (1)
featurePayment nsA:featurePayment 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:barrierCap, nsA:barrierFloor, nsA:knockIn, nsA:knockOut
