Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: bullionPhysicalLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:BullionPhysicalLeg
Containing Schema: fpml-com-5-0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The physical leg of a Commodity Forward Transaction for which the underlyer is Bullion.

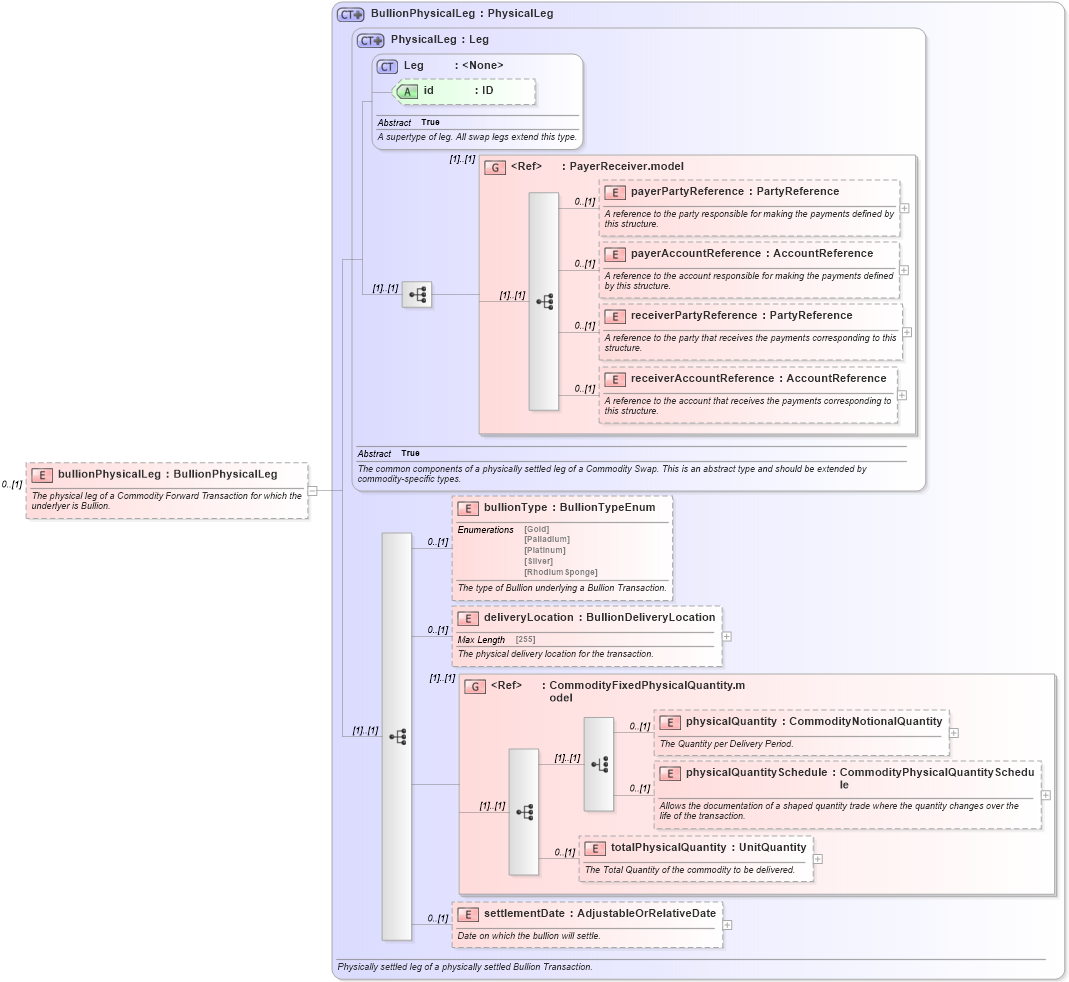

Collapse XSD Schema Diagram:
Drilldown into settlementDate in schema fpml-com-5-0_xsd1 Drilldown into totalPhysicalQuantity in schema fpml-com-5-0_xsd1 Drilldown into physicalQuantitySchedule in schema fpml-com-5-0_xsd1 Drilldown into physicalQuantity in schema fpml-com-5-0_xsd1 Drilldown into CommodityFixedPhysicalQuantity.model in schema fpml-com-5-0_xsd1 Drilldown into deliveryLocation in schema fpml-com-5-0_xsd1 Drilldown into bullionType in schema fpml-com-5-0_xsd1 Drilldown into receiverAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into receiverPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into payerAccountReference in schema fpml-shared-5-0_xsd1 Drilldown into payerPartyReference in schema fpml-shared-5-0_xsd1 Drilldown into PayerReceiver.model in schema fpml-shared-5-0_xsd1 Drilldown into id in schema fpml-shared-5-0_xsd1 Drilldown into Leg in schema fpml-shared-5-0_xsd1 Drilldown into PhysicalLeg in schema fpml-com-5-0_xsd1 Drilldown into BullionPhysicalLeg in schema fpml-com-5-0_xsd1XSD Diagram of bullionPhysicalLeg in schema fpml-com-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="bullionPhysicalLeg" type="BullionPhysicalLeg" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The physical leg of a Commodity Forward Transaction for which the underlyer is Bullion.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsB:payerPartyReference 0 (1)
payerAccountReference nsB:payerAccountReference 0 (1)
receiverPartyReference nsB:receiverPartyReference 0 (1)
receiverAccountReference nsB:receiverAccountReference 0 (1)
bullionType nsB:bullionType 0 (1)
deliveryLocation nsB:deliveryLocation 0 (1)
physicalQuantity nsB:physicalQuantity 0 (1)
physicalQuantitySchedule nsB:physicalQuantitySchedule 0 (1)
totalPhysicalQuantity nsB:totalPhysicalQuantity 0 (1)
settlementDate nsB:settlementDate 0 (1)
<xs:group> nsB:PayerReceiver.model (1) (1)
<xs:group> nsB:CommodityFixedPhysicalQuantity.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
