Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: cashSettlement
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:CashSettlement
Containing Schema: fpml-ird-5-0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
If specified, this means that cash settlement is applicable to the transaction and defines the parameters associated with the cash settlement prodcedure. If not specified, then physical settlement is applicable.

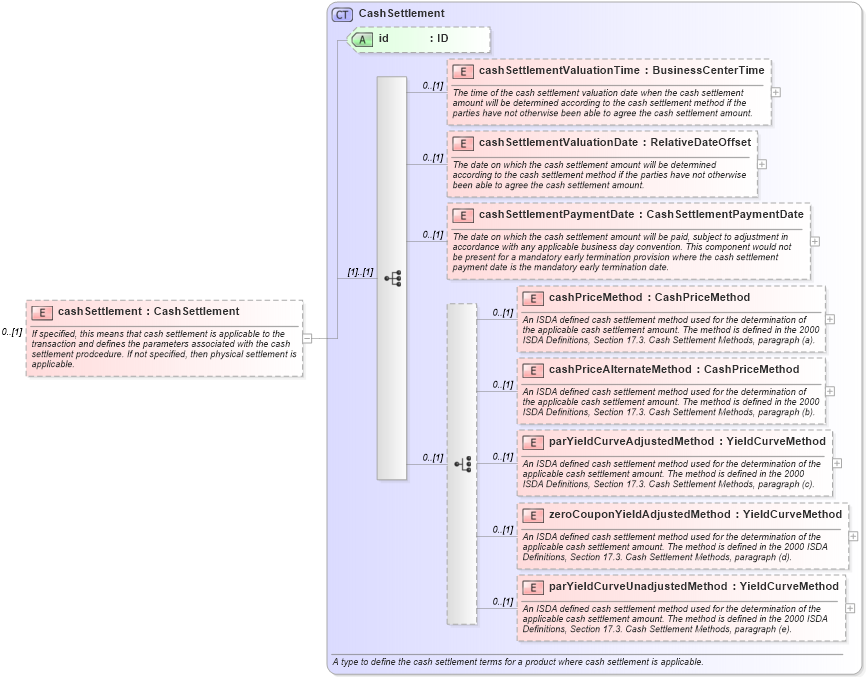

Collapse XSD Schema Diagram:
Drilldown into parYieldCurveUnadjustedMethod in schema fpml-ird-5-0_xsd1 Drilldown into zeroCouponYieldAdjustedMethod in schema fpml-ird-5-0_xsd1 Drilldown into parYieldCurveAdjustedMethod in schema fpml-ird-5-0_xsd1 Drilldown into cashPriceAlternateMethod in schema fpml-ird-5-0_xsd1 Drilldown into cashPriceMethod in schema fpml-ird-5-0_xsd1 Drilldown into cashSettlementPaymentDate in schema fpml-ird-5-0_xsd1 Drilldown into cashSettlementValuationDate in schema fpml-ird-5-0_xsd1 Drilldown into cashSettlementValuationTime in schema fpml-ird-5-0_xsd1 Drilldown into id in schema fpml-ird-5-0_xsd1 Drilldown into CashSettlement in schema fpml-ird-5-0_xsd1XSD Diagram of cashSettlement in schema fpml-ird-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="cashSettlement" type="CashSettlement" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">If specified, this means that cash settlement is applicable to the transaction and defines the parameters associated with the cash settlement prodcedure. If not specified, then physical settlement is applicable.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cashSettlementValuationTime nsB:cashSettlementValuationTime 0 (1)
cashSettlementValuationDate nsB:cashSettlementValuationDate 0 (1)
cashSettlementPaymentDate nsB:cashSettlementPaymentDate 0 (1)
cashPriceMethod nsB:cashPriceMethod 0 (1)
cashPriceAlternateMethod nsB:cashPriceAlternateMethod 0 (1)
parYieldCurveAdjustedMethod nsB:parYieldCurveAdjustedMethod 0 (1)
zeroCouponYieldAdjustedMethod nsB:zeroCouponYieldAdjustedMethod 0 (1)
parYieldCurveUnadjustedMethod nsB:parYieldCurveUnadjustedMethod 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
