Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: coal
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsB:CoalProduct
Containing Schema: fpml-com-5-0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The specification of the Coal Product to be delivered.

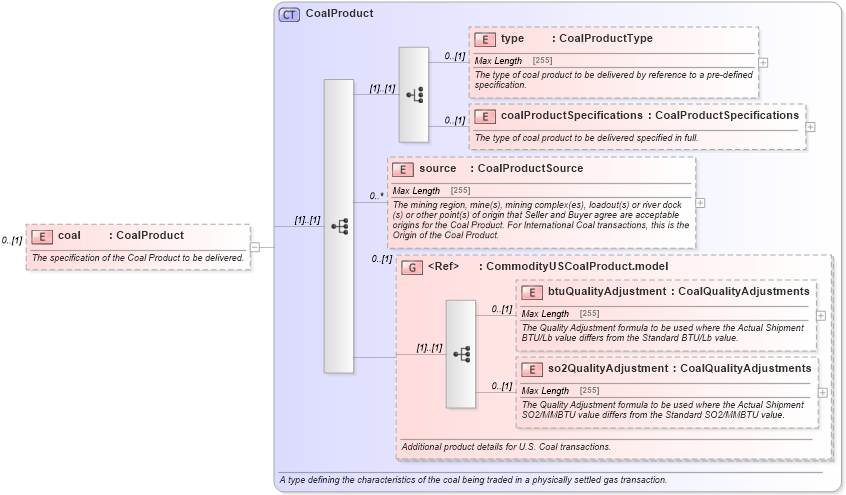

Collapse XSD Schema Diagram:
Drilldown into so2QualityAdjustment in schema fpml-com-5-0_xsd1 Drilldown into btuQualityAdjustment in schema fpml-com-5-0_xsd1 Drilldown into CommodityUSCoalProduct.model in schema fpml-com-5-0_xsd1 Drilldown into source in schema fpml-com-5-0_xsd1 Drilldown into coalProductSpecifications in schema fpml-com-5-0_xsd1 Drilldown into type in schema fpml-com-5-0_xsd1 Drilldown into CoalProduct in schema fpml-com-5-0_xsd1XSD Diagram of coal in schema fpml-com-5-0_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="coal" type="CoalProduct" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The specification of the Coal Product to be delivered.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type nsB:type 0 (1)
coalProductSpecifications nsB:coalProductSpecifications 0 (1)
source nsB:source 0 unbounded
btuQualityAdjustment nsB:btuQualityAdjustment 0 (1)
so2QualityAdjustment nsB:so2QualityAdjustment 0 (1)
<xs:group> nsB:CommodityUSCoalProduct.model 0 (1)
Collapse Derivation Tree:
