Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CommodityOption
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:Product
Containing Schema: fpml-com-5-0.xsd
Abstract
Documentation:
Commodity Option.

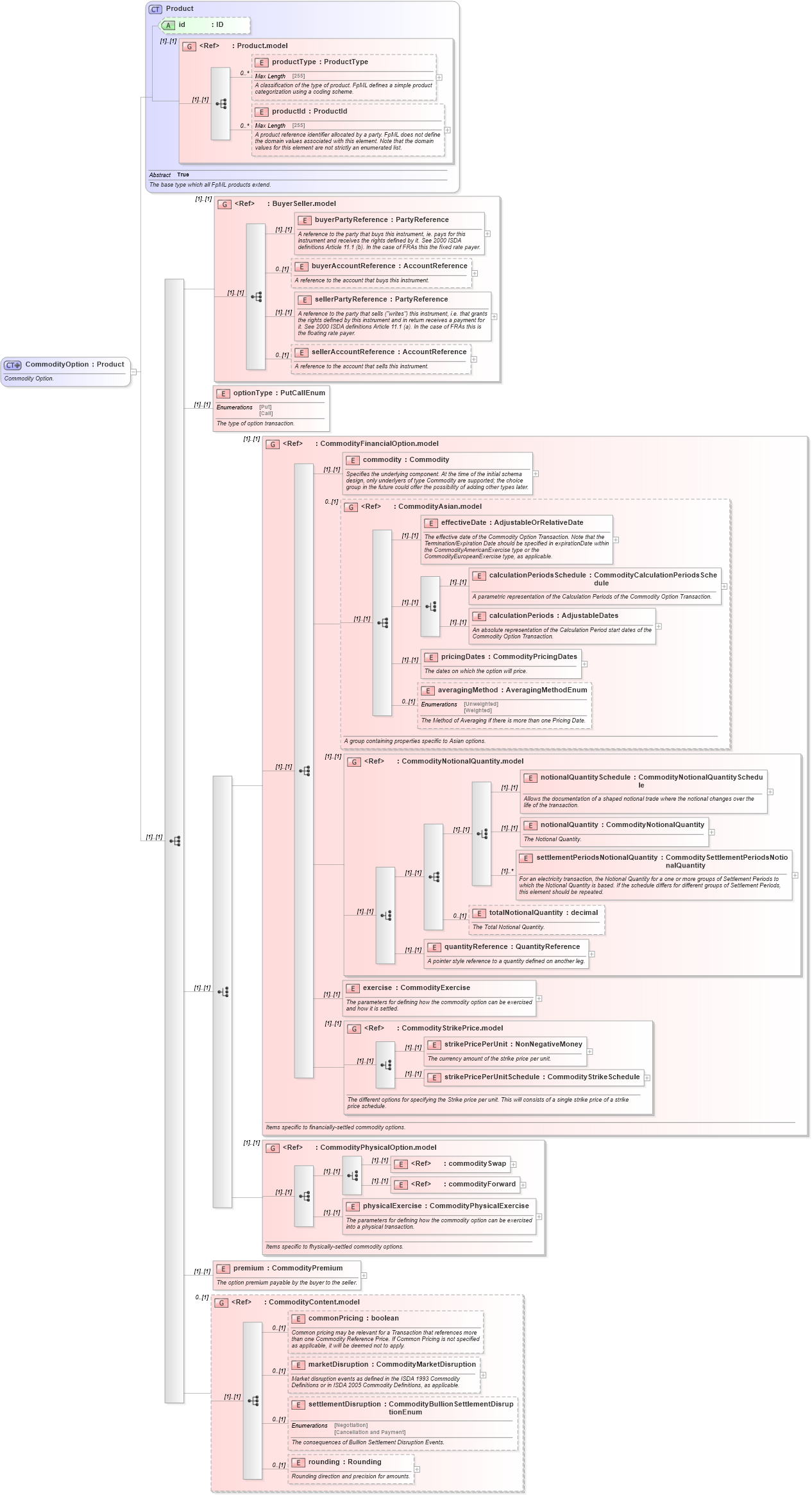

Collapse XSD Schema Diagram:
Drilldown into rounding in schema fpml-com-5-0_xsd Drilldown into settlementDisruption in schema fpml-com-5-0_xsd Drilldown into marketDisruption in schema fpml-com-5-0_xsd Drilldown into commonPricing in schema fpml-com-5-0_xsd Drilldown into CommodityContent.model in schema fpml-com-5-0_xsd Drilldown into premium in schema fpml-com-5-0_xsd Drilldown into physicalExercise in schema fpml-com-5-0_xsd Drilldown into commodityForward in schema fpml-com-5-0_xsd Drilldown into commoditySwap in schema fpml-com-5-0_xsd Drilldown into CommodityPhysicalOption.model in schema fpml-com-5-0_xsd Drilldown into strikePricePerUnitSchedule in schema fpml-com-5-0_xsd Drilldown into strikePricePerUnit in schema fpml-com-5-0_xsd Drilldown into CommodityStrikePrice.model in schema fpml-com-5-0_xsd Drilldown into exercise in schema fpml-com-5-0_xsd Drilldown into quantityReference in schema fpml-com-5-0_xsd Drilldown into totalNotionalQuantity in schema fpml-com-5-0_xsd Drilldown into settlementPeriodsNotionalQuantity in schema fpml-com-5-0_xsd Drilldown into notionalQuantity in schema fpml-com-5-0_xsd Drilldown into notionalQuantitySchedule in schema fpml-com-5-0_xsd Drilldown into CommodityNotionalQuantity.model in schema fpml-com-5-0_xsd Drilldown into averagingMethod in schema fpml-com-5-0_xsd Drilldown into pricingDates in schema fpml-com-5-0_xsd Drilldown into calculationPeriods in schema fpml-com-5-0_xsd Drilldown into calculationPeriodsSchedule in schema fpml-com-5-0_xsd Drilldown into effectiveDate in schema fpml-com-5-0_xsd Drilldown into CommodityAsian.model in schema fpml-com-5-0_xsd Drilldown into commodity in schema fpml-com-5-0_xsd Drilldown into CommodityFinancialOption.model in schema fpml-com-5-0_xsd Drilldown into optionType in schema fpml-com-5-0_xsd Drilldown into sellerAccountReference in schema fpml-shared-5-0_xsd Drilldown into sellerPartyReference in schema fpml-shared-5-0_xsd Drilldown into buyerAccountReference in schema fpml-shared-5-0_xsd Drilldown into buyerPartyReference in schema fpml-shared-5-0_xsd Drilldown into BuyerSeller.model in schema fpml-shared-5-0_xsd Drilldown into productId in schema fpml-shared-5-0_xsd Drilldown into productType in schema fpml-shared-5-0_xsd Drilldown into Product.model in schema fpml-shared-5-0_xsd Drilldown into id in schema fpml-shared-5-0_xsd Drilldown into Product in schema fpml-shared-5-0_xsdXSD Diagram of CommodityOption in schema fpml-com-5-0_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CommodityOption">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Commodity Option.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Product">
            <xsd:sequence>
                <xsd:group ref="BuyerSeller.model" />
                <xsd:element name="optionType" type="PutCallEnum">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The type of option transaction.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:choice>
                    <xsd:group ref="CommodityFinancialOption.model">
                        <xsd:annotation>
                            <xsd:documentation>Items specific to financially-settled commodity options.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:group>
                    <xsd:group ref="CommodityPhysicalOption.model">
                        <xsd:annotation>
                            <xsd:documentation>Items specific to fhysically-settled commodity options.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:group>
                </xsd:choice>
                <xsd:element name="premium" type="CommodityPremium">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The option premium payable by the buyer to the seller.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="CommodityContent.model" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType nsA:productType 0 unbounded
productId nsA:productId 0 unbounded
buyerPartyReference nsA:buyerPartyReference (1) (1)
buyerAccountReference nsA:buyerAccountReference 0 (1)
sellerPartyReference nsA:sellerPartyReference (1) (1)
sellerAccountReference nsA:sellerAccountReference 0 (1)
optionType nsA:optionType (1) (1)
commodity nsA:commodity (1) (1)
effectiveDate nsA:effectiveDate (1) (1)
calculationPeriodsSchedule nsA:calculationPeriodsSchedule (1) (1)
calculationPeriods nsA:calculationPeriods (1) (1)
pricingDates nsA:pricingDates (1) (1)
averagingMethod nsA:averagingMethod 0 (1)
notionalQuantitySchedule nsA:notionalQuantitySchedule (1) (1)
notionalQuantity nsA:notionalQuantity (1) (1)
settlementPeriodsNotionalQuantity nsA:settlementPeriodsNotionalQuantity (1) unbounded
totalNotionalQuantity nsA:totalNotionalQuantity 0 (1)
quantityReference nsA:quantityReference (1) (1)
exercise nsA:exercise (1) (1)
strikePricePerUnit nsA:strikePricePerUnit (1) (1)
strikePricePerUnitSchedule nsA:strikePricePerUnitSchedule (1) (1)
commoditySwap nsA:commoditySwap (1) (1)
commodityForward nsA:commodityForward (1) (1)
physicalExercise nsA:physicalExercise (1) (1)
premium nsA:premium (1) (1)
commonPricing nsA:commonPricing 0 (1)
marketDisruption nsA:marketDisruption 0 (1)
settlementDisruption nsA:settlementDisruption 0 (1)
rounding nsA:rounding 0 (1)
<xs:group> nsA:BuyerSeller.model (1) (1)
<xs:group> nsA:CommodityFinancialOption.model (1) (1)
<xs:group> nsA:CommodityAsian.model 0 (1)
<xs:group> nsA:CommodityNotionalQuantity.model (1) (1)
<xs:group> nsA:CommodityStrikePrice.model (1) (1)
<xs:group> nsA:CommodityPhysicalOption.model (1) (1)
<xs:group> nsA:CommodityContent.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:commodityOption
